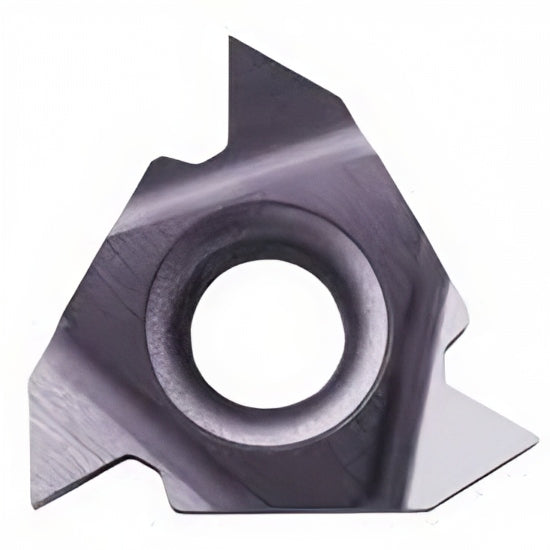

External Thread Turning Insert – ACME Full Profile
The ACME Full Profile External Thread Turning Insert is designed to produce precise and robust ACME threads, ideal for applications requiring high load-bearing capacity such as lead screws, mechanical actuators, and power transmission components. With a 5 TPI pitch, this insert forms the full ACME profile including crest, root, and flanks in one efficient operation.
Manufactured from durable BMA-grade carbide, the insert provides excellent wear resistance, thermal stability, and cutting edge integrity. Its optimized geometry, including X and Y values of 2.0 mm and 2.3 mm respectively, ensures smooth cutting performance, efficient chip control, and consistent thread quality in external left-hand threading applications.
Key Features:
- Ordering Code: 22 ER 5 ACME BMA
- Thread Type: ACME
- Profile: Full Form
- Insert Type: External
- Hand: Left Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch: 5 TPI
- X: 2.0 mm
- Y: 2.3 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for ACME Thread Forms
- Key Advantage: High-strength full-profile threading for demanding mechanical applications
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
