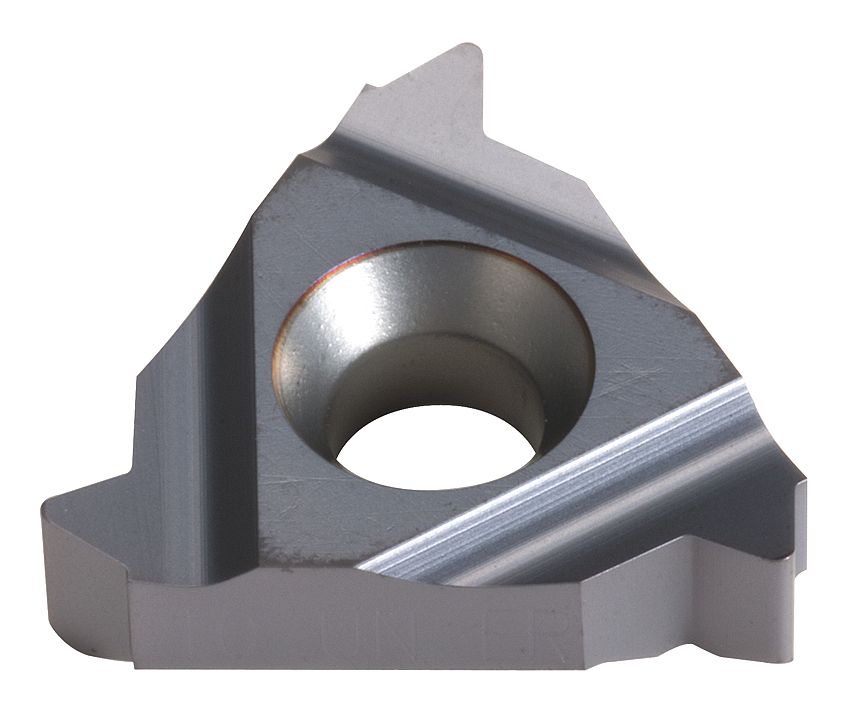

External Thread Turning Insert – BSPT Full Profile 55°
The BSPT Full Profile External Thread Turning Insert is engineered for threading British Standard Pipe Taper (BSPT) profiles with precision and consistency. Designed for 19 TPI, this insert forms the full 55° thread profile crest, root, and flanks in a single pass, ensuring pressure-tight and standardized thread profiles ideal for pipe and hydraulic systems.
Constructed from high-performance BMA-grade carbide, this insert offers superior wear resistance, heat stability, and edge retention. Its optimized geometry particularly the X and Y dimensions ensures stable cutting, efficient chip control, and reliable performance across a range of industrial materials.
Key Features:

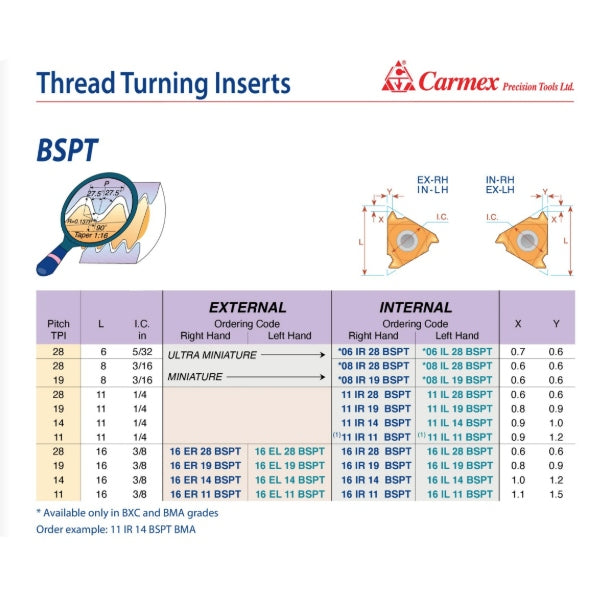

- Ordering Code: 16 ER 19 BSPT BMA
- Thread Type: BSPT (British Standard Pipe Taper – 55°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 19 TPI
- X: 0.8 mm
- Y: 1.0 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for BSPT Tapered Pipe Threads
- Key Advantage: Full-profile 55° threading with reliable sealing capability and excellent wear resistance
Manufactured by Carmex Precision Tools Ltd. a worldwide leader in advanced threading technologies this insert is part of an extensive product range including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Known for precision, durability, and consistency, Carmex tooling is trusted across industries for high-performance machining.
