Deskripsi

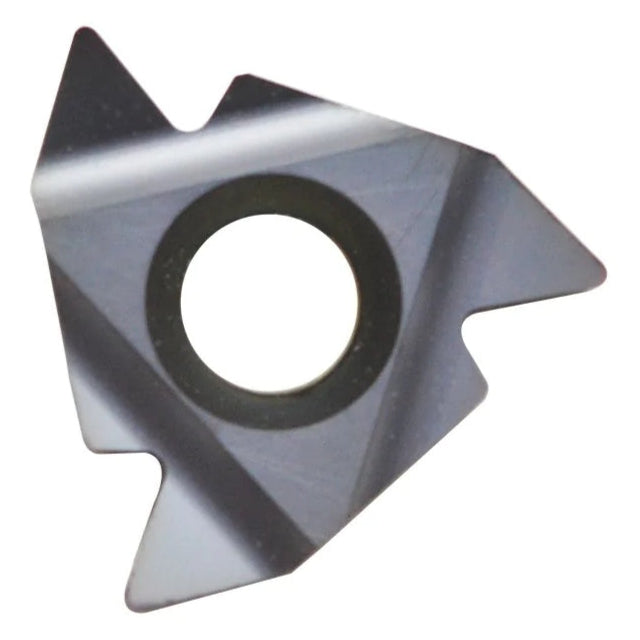

External Thread Turning Insert – ISO Full Profile 60°
The ISO Full Profile External Thread Turning Insert is designed to machine metric thread forms with a 60° angle, delivering accurate and complete thread profiles in a single pass. With a pitch range of 6.0 mm, this insert is suited for coarse-pitch external threading on larger components.
Crafted from high-performance BMA-grade carbide, the insert ensures excellent edge retention, wear resistance, and performance on alloyed steels and general-purpose materials. Its precision-ground geometry, along with optimized X and Y dimensions, promotes clean chip formation and consistent cutting results.
Key Features:

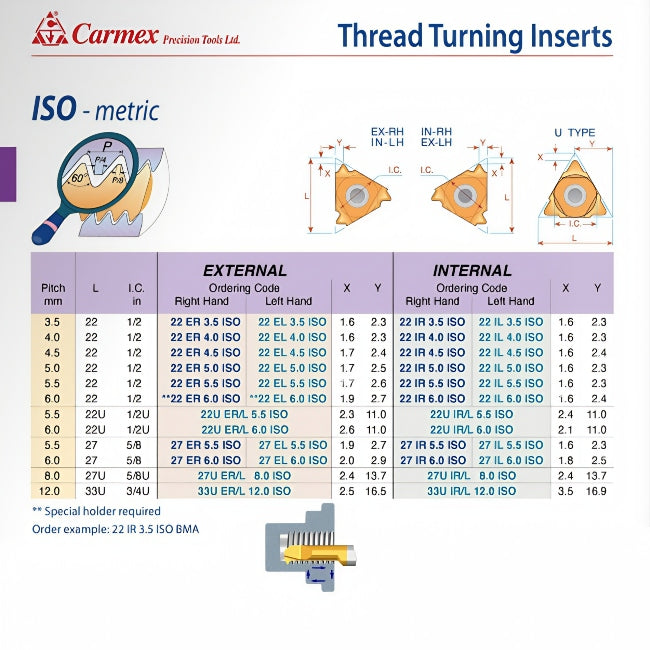

- Ordering Code: 22 ER 6.0 ISO BMA
- Thread Type: ISO Metric (60°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch Range: 6.0 mm
- X: 1.6 mm
- Y: 2.3 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for Metric Thread Forms
- Key Advantage: High-performance threading with long tool life and excellent dimensional control
Carmex Precision Tools Ltd. is a world-class manufacturer of advanced threading solutions. Their extensive range of products—covering Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills is engineered for precision, reliability, and efficiency in diverse machining environments.
