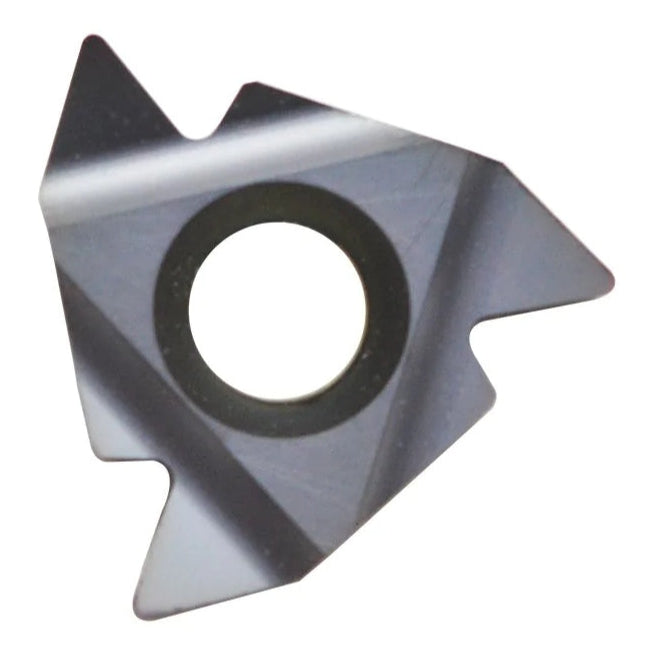

External Thread Turning Insert – NPT Full Profile
The NPT Full Profile External Thread Turning Insert is designed for precise threading of National Pipe Taper (NPT) threads. With a pitch of 12 TPI and a 60° thread angle, this insert forms the complete thread profile—crest, root, and flanks—ensuring pressure-tight and dimensionally accurate pipe threads suitable for fluid and gas systems.
Crafted from BMA-grade carbide, this insert offers superior wear resistance, thermal stability, and edge retention, making it ideal for machining stainless steel, alloys, and other tough materials. Optimized X and Y dimensions provide smooth cutting action, chip control, and consistent performance in high-volume threading applications.
Key Features:

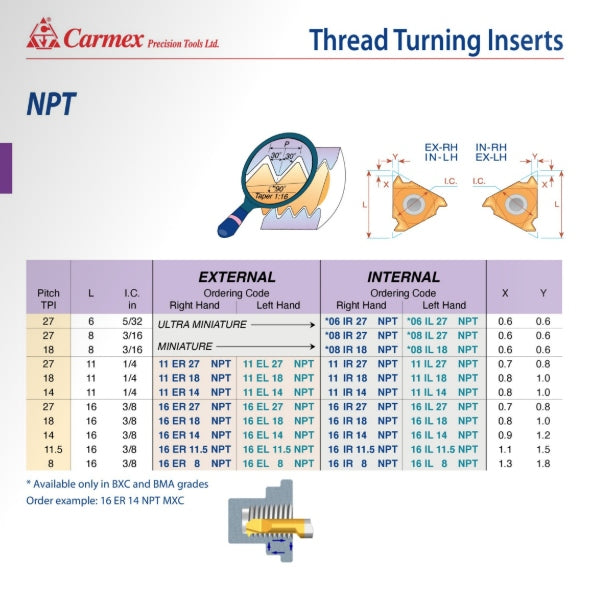

- Ordering Code: 16 ER 12 NPT BMA
- Thread Type: NPT (National Pipe Taper – 60°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 12 TPI
- X: 1.0 mm
- Y: 1.3 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for NPT Pipe Threads
- Key Advantage: Full-profile, pressure-tight threading with high durability and dimensional control
Manufactured by Carmex Precision Tools Ltd.—a global leader in precision threading solutions—this insert is part of a comprehensive tooling range including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are trusted worldwide for their quality, performance, and consistency in demanding machining environments.
