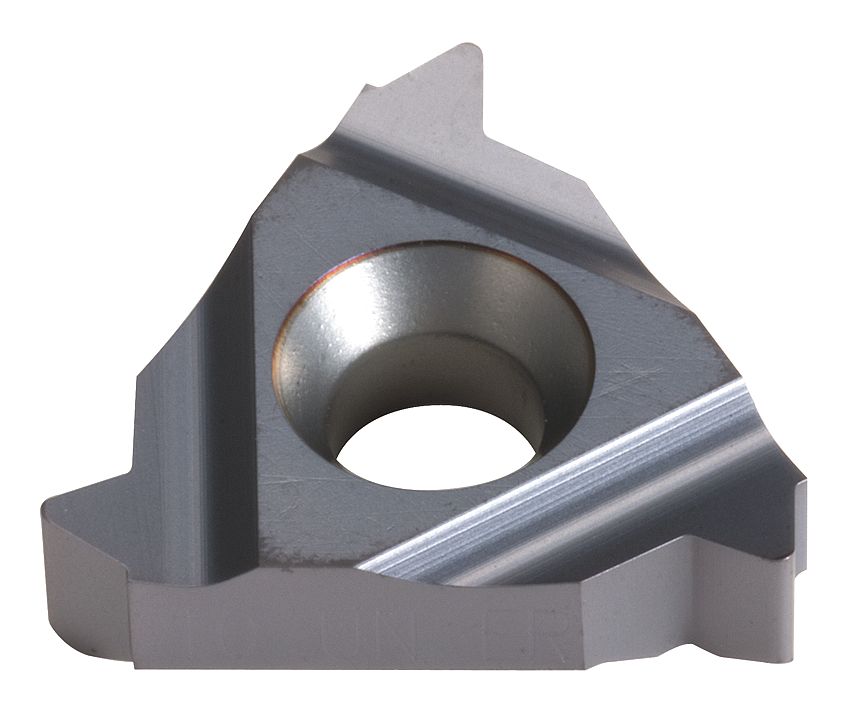

External Thread Turning Insert – NPT Full Profile 60°
The NPT Full Profile External Thread Turning Insert is purpose-built for machining tapered pipe threads conforming to the National Pipe Taper (NPT) standard. With a 60° thread angle and a 27 TPI pitch, this insert cuts the full thread form—crest, root, and flanks—ensuring pressure-tight and standardized connections for piping and fluid systems.
Made from high-performance BMA-grade carbide, the insert provides excellent wear resistance, edge strength, and thermal stability. Its precise cutting geometry, including X and Y values, guarantees accurate thread profiles, smooth chip control, and extended tool life even in challenging production environments.
Key Features:

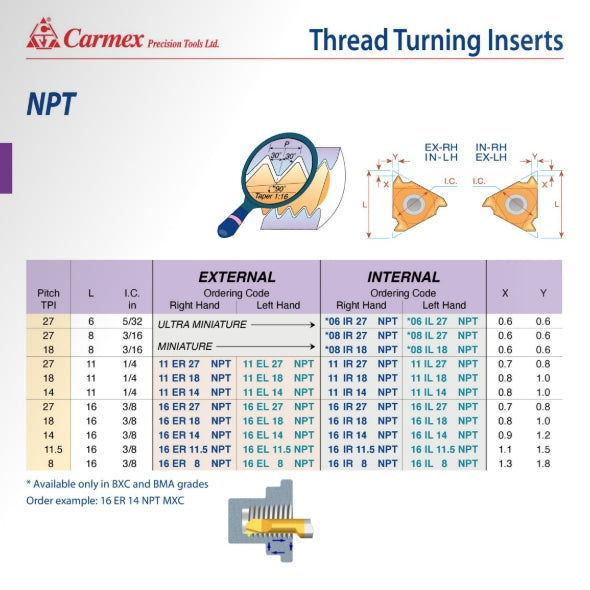

- Ordering Code: 16 ER 27 NPT BMA
- Thread Type: NPT (National Pipe Taper – 60°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 27 TPI
- X: 0.6 mm
- Y: 0.6 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for NPT Pipe Threads
- Key Advantage: Full-profile tapered thread cutting with excellent sealing performance and durability
Manufactured by Carmex Precision Tools Ltd.—a global leader in advanced threading solutions—this insert is part of a comprehensive range that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are trusted worldwide for their precision, consistency, and long-lasting performance in industrial threading applications.
