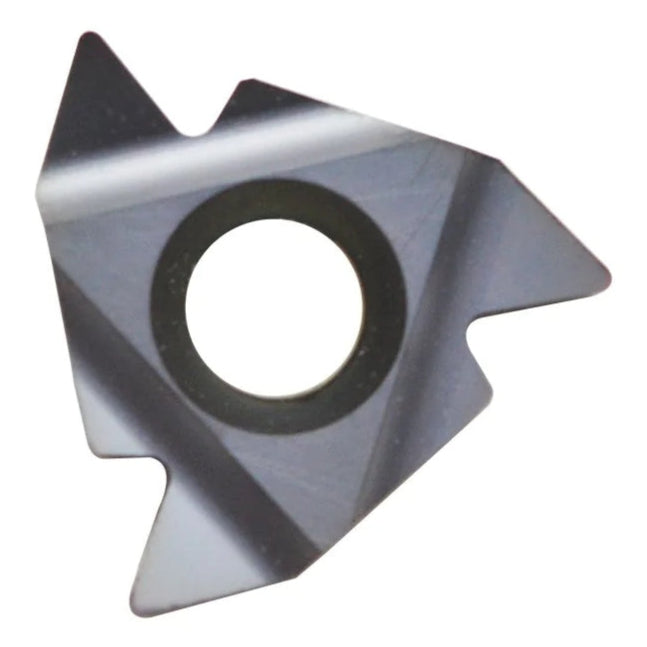

External Thread Turning Insert – NPT Full Profile
The 16 ER 8 NPT BMA is a high-performance external thread turning insert designed for producing precise NPT threads at 8 TPI. Ideal for tapered thread applications in pipe systems, this insert conforms to the 60° profile standard used in National Pipe Taper threads.
Crafted from BMA-grade carbide, it offers excellent wear resistance and durability, making it well-suited for demanding threading operations in steel, stainless steel, and non-ferrous alloys. The 16mm insert length and 3/8" I.C. provide a stable, reliable performance in external threading tasks.
Key Features:

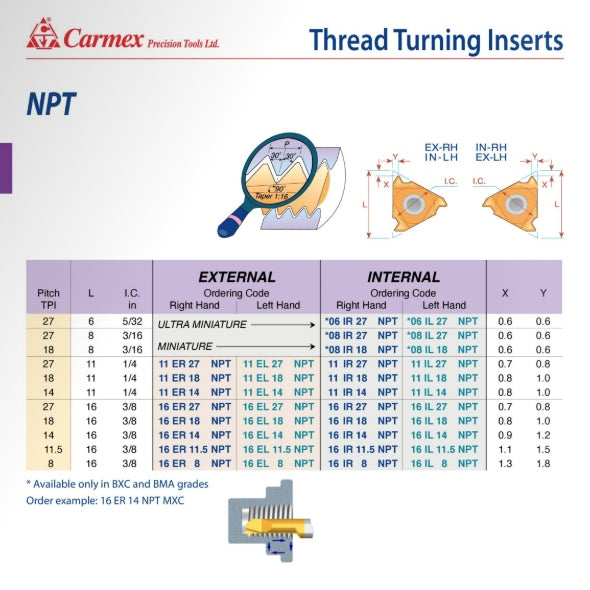

- Ordering Code: 16 ER 8 NPT BMA
- Thread Type: NPT (National Pipe Taper)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 8 TPI
- X: 1.3 mm
- Y: 1.8 mm
- Carbide Grade: BMA
- Applications: External pipe threading, pressure-tight joint threads
- Key Advantage: High accuracy with excellent chip evacuation in tapered thread cutting
Manufactured by Carmex Precision Tools Ltd., a leader in advanced threading solutions. Carmex tools are trusted worldwide for turning and milling applications, offering innovative designs and superior material performance. Product lines include Thread Turning inserts, Mill Thread systems, and Solid Carbide threadmills.
