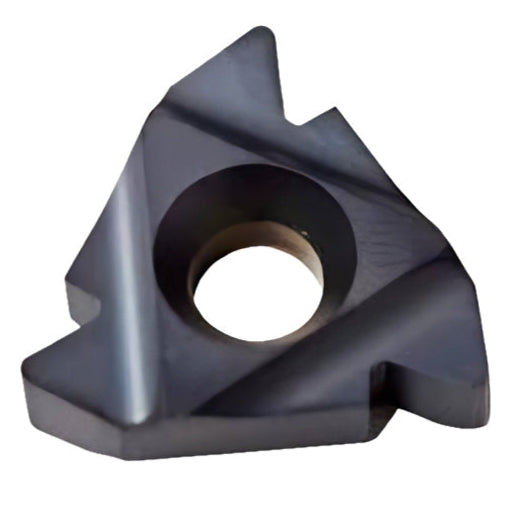

Carmex External Right Hand Partial Profile 60° Thread Turning Insert 7-5 TPI / 22 ER N60 BMA

SKU:22 ER N60 BMA

Harga:
Harga penjualan$49.54

Termasuk pajak Pengiriman dihitung saat checkout

persediaan:
Hanya1 unit tersisa

Deskripsi

External Thread Turning Insert – 60° Partial Profile

The 60° Partial Profile External Thread Turning Insert offers versatile threading performance for both metric and unified thread forms across a broad pitch range of 3.5–5.0 mm (7–5 TPI). This flexibility allows a single insert to accommodate multiple thread types and pitches, making it ideal for a wide range of threading applications in general machining.

Crafted from high-performance BMA-grade carbide, this insert delivers excellent wear resistance, toughness, and heat stability. The partial profile geometry ensures clean flank cutting while allowing for form versatility, and the insert's X and Y dimensions (1.7 mm and 2.5 mm) support efficient chip evacuation and consistent machining results.

Key Features:

  • Ordering Code: 22 ER N60 BMA
  • Thread Type: 60° (Metric/Unified – Partial Profile)
  • Profile: 60° Partial Profile
  • Insert Type: External
  • Hand: Right Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch Range (mm): 3.5 – 5.0
  • Pitch Range (TPI): 7 – 5
  • X: 1.7 mm
  • Y: 2.5 mm
  • Carbide Grade: BMA
  • Applications: External Thread Turning for Metric and Unified Threads
  • Key Advantage: Multi-pitch capability with a single insert, ideal for flexible and cost-effective machining

Carmex Precision Tools Ltd. is a global innovator in precision threading solutions. Their comprehensive product range includes thread turning inserts, toolholders, Mill-Thread systems, and solid carbide threadmills—all engineered to meet the highest standards of quality and performance in modern machining environments.
