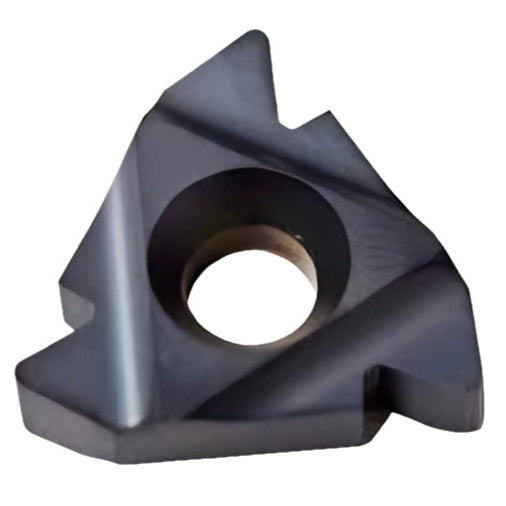

External Thread Turning Insert – Trapez Full Profile
The Trapez Full Profile External Thread Turning Insert is designed for the accurate and efficient production of trapez threads according to DIN 103 standards. With a pitch of 1.5 mm (equivalent to a 6 TR designation), this insert forms the complete thread profile—crest, root, and flanks—ensuring optimal fit and strength for power transmission or linear motion applications.
Manufactured from premium BMA-grade carbide, this insert provides excellent wear resistance and cutting stability. Its optimized geometry, with X and Y dimensions of 2.3 mm and 2.7 mm respectively, allows for smooth chip flow and consistent threading in various materials.
Key Features:
- Ordering Code: 27 ER 6 TR BMA
- Thread Type: TR (Trapez – DIN 103)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 1.5 mm
- X: 2.3 mm
- Y: 2.7 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for Trapez Thread Forms (DIN 103)
- Key Advantage: High-precision, load-bearing thread generation with excellent tool life
Carmex Precision Tools Ltd. is a globally trusted leader in threading solutions. Their range of precision cutting tools includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills—developed for high performance and accuracy across diverse industrial applications.
