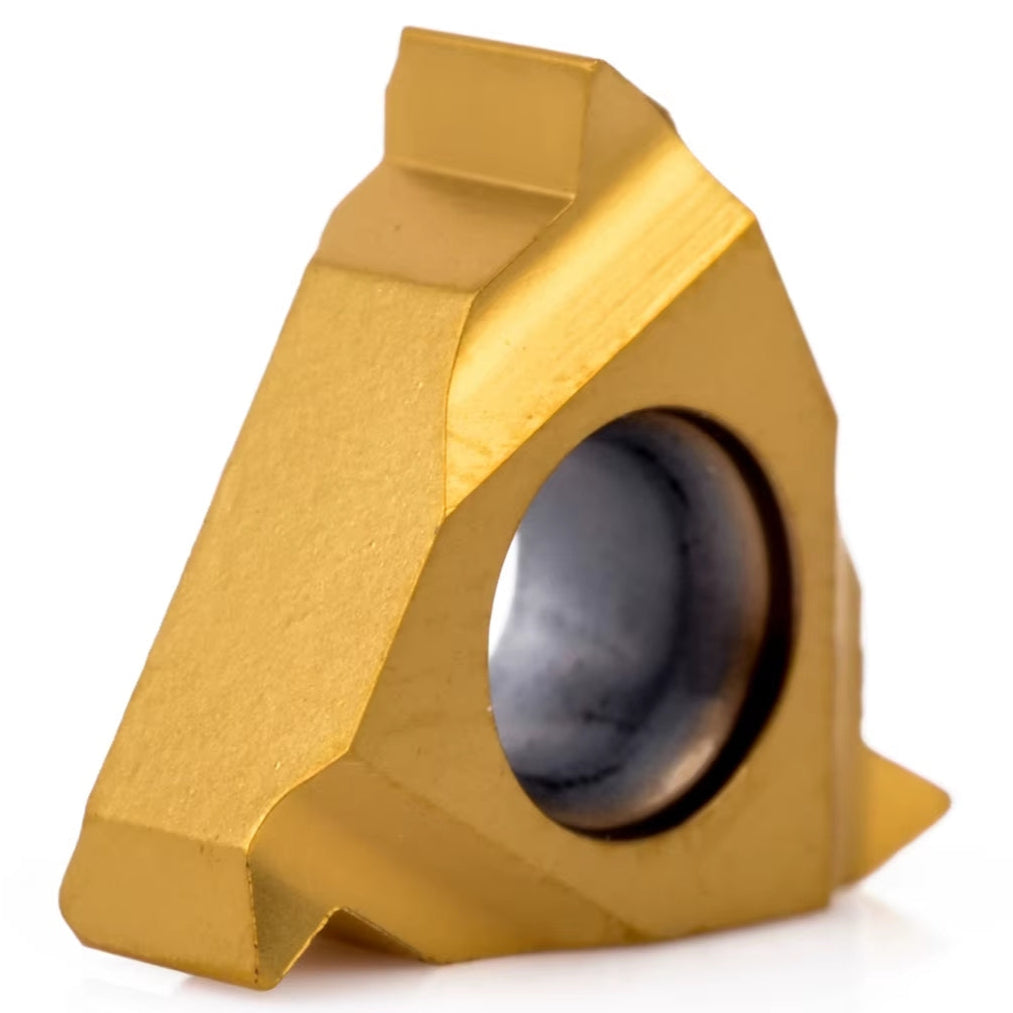

External Thread Turning Insert – UN Full Profile 60°
The UN Full Profile External Thread Turning Insert is designed for producing precise Unified threads (UNC, UNF, UNEF, UNS) in external applications. With a 60° thread profile and a pitch of 13 TPI, this insert accurately forms the full thread geometry—including crest, root, and flanks—in a single pass, delivering high thread integrity and consistency.
Crafted from premium P25C-grade carbide, the insert offers outstanding wear resistance and heat stability, especially effective in machining stainless steels, hardened alloys, and other difficult materials. Its refined X and Y dimensions ensure secure engagement, smooth chip flow, and precise cutting results.
Key Features:
- Ordering Code: 16 ER 13 UN P25C
- Thread Type: UN (Unified Thread Standard – 60°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 13 TPI
- X: 1.0 mm
- Y: 1.3 mm
- Carbide Grade: P25C
- Applications: External Thread Turning for Unified Thread Forms (UNC/UNF/UNEF)
- Key Advantage: High-performance full-profile threading with excellent wear resistance for fine to medium pitches
Manufactured by Carmex Precision Tools Ltd.—a global leader in advanced threading technologies—this insert is part of a wide-ranging product line including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Known for precision, durability, and performance, Carmex tools are trusted in demanding machining environments worldwide.
