External Thread Turning Insert – 60° Vertical Partial Profile (14–8 TPI)

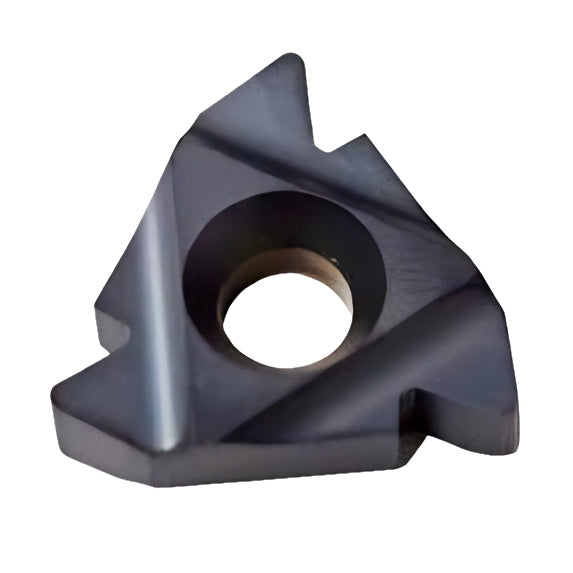

The 22V ER G60 BMA is a high-performance external threading insert designed for vertical partial profile threading applications with a 60° included angle. Supporting a pitch range from 1.75 mm to 3.0 mm (14–8 TPI), this insert is ideal for threading operations that require flexibility across multiple thread sizes while maintaining high accuracy and reliability.

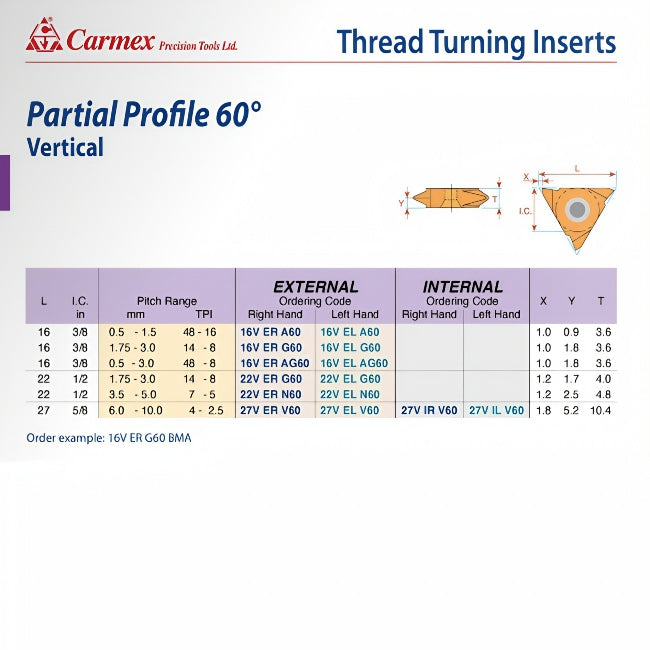

Manufactured from advanced BMA-grade carbide, the insert delivers excellent wear resistance, cutting edge integrity, and thermal performance under demanding conditions. With a 22 mm length and 1/2" I.C., and precision-ground geometry including X = 1.2 mm, Y = 1.7 mm, and T = 4.0 mm, this insert ensures smooth cutting action and optimal chip control.
Key Features:
- Ordering Code: 22V ER G60 BMA
- Thread Type: 60° Vertical Partial Profile
- Profile: Partial Form, 60° included angle
- Insert Type: External
- Hand: Right Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch Range: 1.75 – 3.0 mm
- Pitch Range (TPI): 14 – 8
- X: 1.2 mm
- Y: 1.7 mm
- T: 4.0 mm
- Carbide Grade: BLU
- Applications: External thread turning for ISO/UN/NPT threads across medium pitch ranges
- Key Advantage: One insert supports threading across multiple pitches with high consistency and durability
Carmex Precision Tools Ltd. is a trusted global manufacturer of precision threading solutions. Their Vertical Partial Profile series is engineered for versatility, accuracy, and performance in a wide range of thread turning applications.
