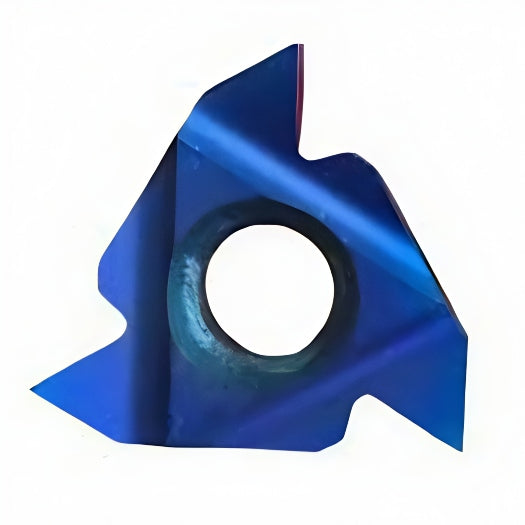

External Thread Turning Insert – 60° Vertical Partial Profile (48–8 TPI)
The 16V ER AG60 BLU is a compact and versatile external thread turning insert designed for vertical threading applications with a 60° partial profile. Covering a broad pitch range from 0.5 mm to 3.0 mm (48–8 TPI), it enables multi-pitch threading with a single insert, making it ideal for general-purpose, maintenance, and low-to-medium volume production tasks.

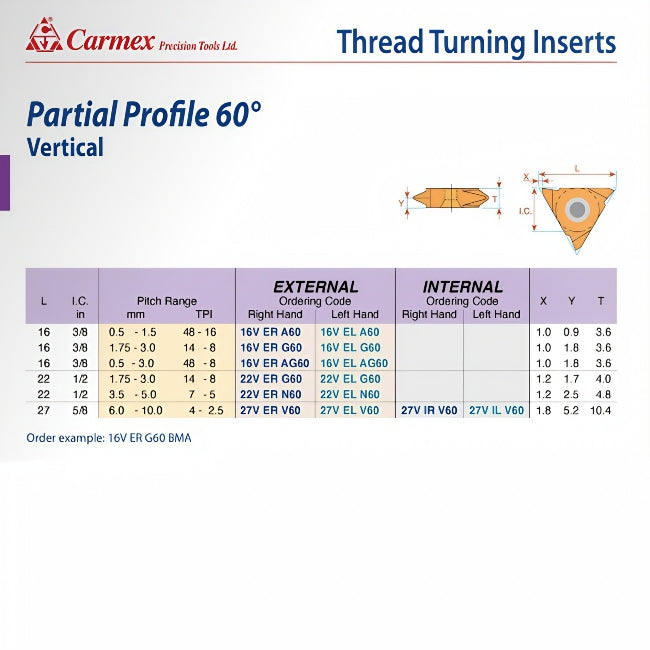

Constructed from high-performance BLU-grade carbide, the insert provides excellent wear resistance, thermal stability, and edge retention. With a 16 mm length and 3/8" I.C., along with X = 1.0 mm, Y = 1.8 mm, and T = 3.6 mm, it delivers clean cutting performance, controlled chip evacuation, and consistent thread geometry across a wide range of thread sizes.
Key Features:
- Ordering Code: 16V ER AG60 BLU
- Thread Type: 60° Vertical Partial Profile
- Profile: Partial Form, 60° included angle
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch Range: 0.5 – 3.0 mm
- Pitch Range (TPI): 48 – 8
- X: 1.0 mm
- Y: 1.8 mm
- T: 3.6 mm
- Carbide Grade: BLU
- Applications: External threading for ISO/UN/NPT profiles across fine to medium pitches
- Key Advantage: Wide pitch range in a single insert with reliable, high-precision performance
Carmex Precision Tools Ltd. delivers advanced threading technology with unmatched quality and precision. Their Vertical Partial Profile inserts are trusted globally for versatility, consistency, and long tool life in multi-pitch thread turning operations.
