Deskripsi

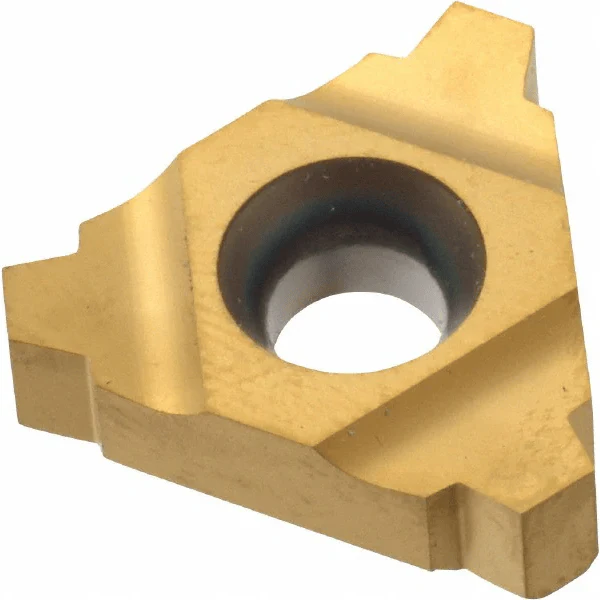

External Thread Turning Insert – Whitworth Profile (12 TPI)
The 16 ER 12 W P25C is a precision external thread turning insert designed specifically for cutting 12 TPI Whitworth thread forms, commonly used in traditional British-standard pipe and mechanical assemblies. With a 55° included angle and rounded thread root and crest in accordance with BS 84 standards, this insert ensures consistent, high-quality thread generation.
Made from versatile P25C-grade carbide, the insert provides balanced performance in general-purpose steel machining, combining good toughness, wear resistance, and thermal stability. With a 16 mm length and 3/8" I.C., and geometry featuring X = 1.1 mm and Y = 1.4 mm, it offers stable cutting, clean thread profiles, and reliable chip evacuation.
Key Features:
- Ordering Code: 16 ER 12 W P25C
- Thread Type: Whitworth (BS 84 Standard)
- Profile: 55° included angle with rounded root and crest
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch (TPI): 12
- X: 1.1 mm
- Y: 1.4 mm
- Carbide Grade: P25C
- Applications: External Whitworth thread turning for mechanical components, pipe fittings, and legacy hardware
- Key Advantage: Reliable P25C-grade insert offering consistent Whitworth thread profiles and balanced tool life for general machining
Carmex Precision Tools Ltd. delivers world-class threading solutions for standard and specialized profiles. Their Whitworth inserts are a trusted choice for high-accuracy threading of legacy British threads in both industrial and maintenance settings.
