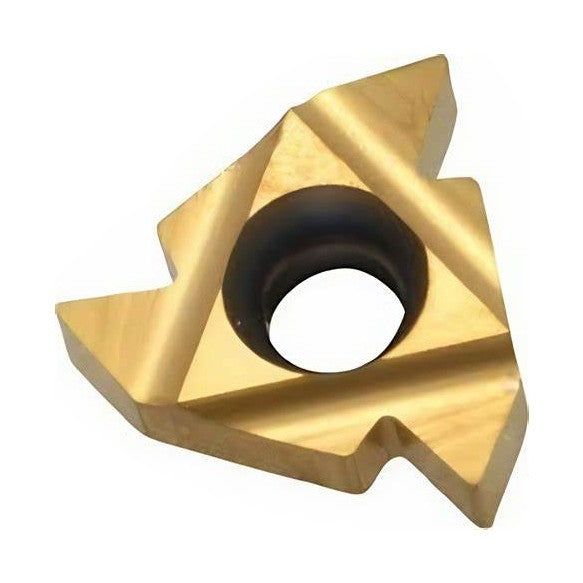

External Thread Turning Insert – Whitworth Profile (14 TPI)
The 16 ER 14 W P25C is a high-precision external threading insert developed for cutting 14 TPI Whitworth thread forms. Featuring a 55° included angle with rounded crest and root per BS 84 standards, this insert is ideal for pipe fittings, fasteners, and mechanical assemblies that require legacy British-standard threads.
Constructed from premium P25C-grade carbide, the insert delivers superior wear resistance, thermal stability, and cutting edge durability making it well-suited for long production runs and tough materials. With a 16 mm length and 3/8" I.C., and optimized X and Y dimensions of 1.0 mm and 1.2 mm respectively, it ensures accurate thread profiles, reliable chip evacuation, and consistent performance.
Key Features:

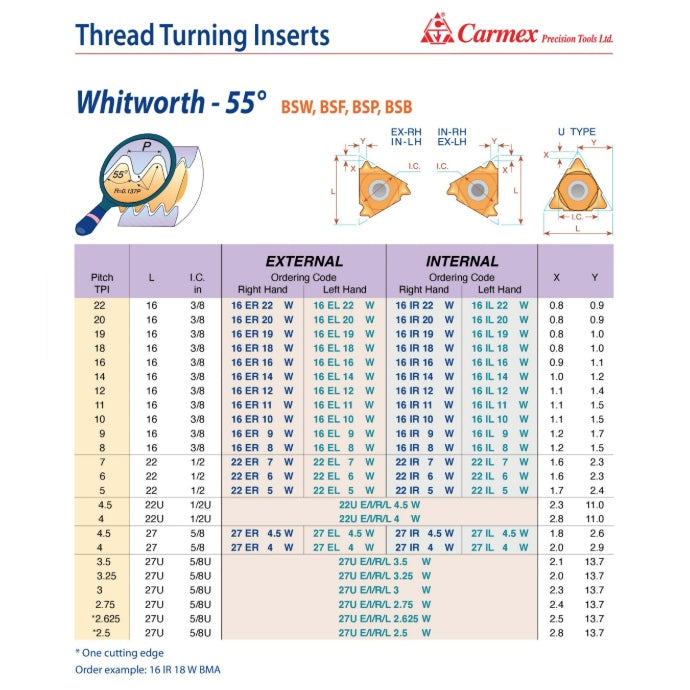

- Ordering Code: 16 ER 14 W P25C
- Thread Type: Whitworth (BS 84 Standard)
- Profile: 55° included angle with rounded root and crest
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch (TPI): 14
- X: 1.0 mm
- Y: 1.2 mm
- Carbide Grade: P25C
- Applications: External Whitworth threading for pipe connections, classic machinery components, and threaded fasteners
- Key Advantage: High-performance insert offering long tool life and consistent Whitworth threads in demanding environments
Carmex Precision Tools Ltd. is renowned for its precision threading solutions across global standards. Their Whitworth insert line ensures reliable, accurate thread forms for industries working with legacy British threads or replacement components.
