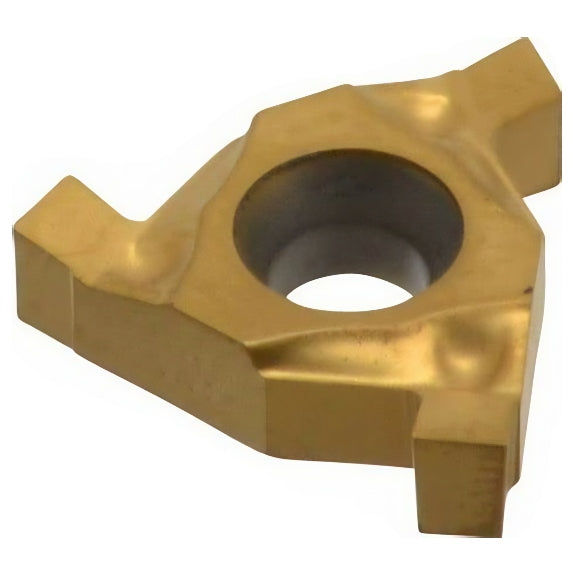

Grooving Insert for Snap Ring – External & Internal Use
This Carmex grooving insert for snap ring applications is engineered to deliver precise and durable grooves using standard Carmex thread turning toolholders. Suitable for both external right-hand and internal left-hand (or vice versa) operations, it provides flexibility and reduces tooling requirements. With a 16 mm (3/8") insert size and support for anvils AE 16-0 or AI 16-0, this insert ensures secure positioning and efficient chip control ideal for snap ring grooves in a wide variety of components.
| Quality | Designation |
|---|---|
| Insert Style | 16 IR/EL |
| Insert Size Code | R1.20 |
| Cutting Width | 2.4 mm |
| Cutting Depth | 2.25 mm |
| Total Length | 16 mm |
| Insert Material | Carbide |
| Grade | BXC |
| Anvil | AI 16-0 |

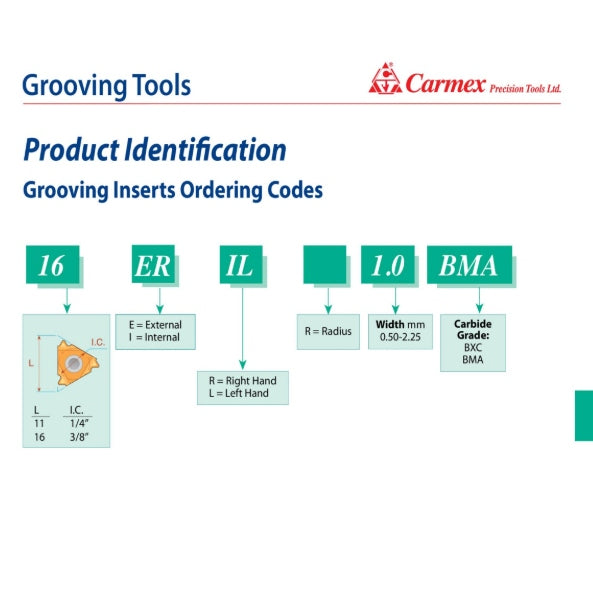

| Order Code | 16 IR/EL R1.20 BXC |
| Hand | Internal Right/ External Left |
| Inscribed Circle (Inch) | 3/8" |
| Series | 16 |
| Rake | Positive |
| Rake Angle | 15 |
| External Relief Angle | 10 |
| Internal Relief Angle | 15 |
| Primary Workpiece Material Code | P, M, K, N |
| Number of Teeth per side | 1 |
| Coating/Finish | PVD TiN |
Carmex Precision Tools Ltd. is a world-renowned manufacturer of cutting-edge threading tools. Their extensive lineup includes Thread Turning inserts, Mill-Thread systems, Spiral Mill-Thread, and Solid Carbide threadmills offering proven reliability, accuracy, and efficiency across all machining sectors.
