Carmex Internal CMT Vertical Threadmill Insert ISO 17.8mm/ 2.0mm pitch

SKU:C18 I 2.0 ISO MT7

Harga:
Harga penjualan$178.20

Termasuk pajak Pengiriman dihitung saat checkout

persediaan:
Hanya6 unit tersisa

Deskripsi

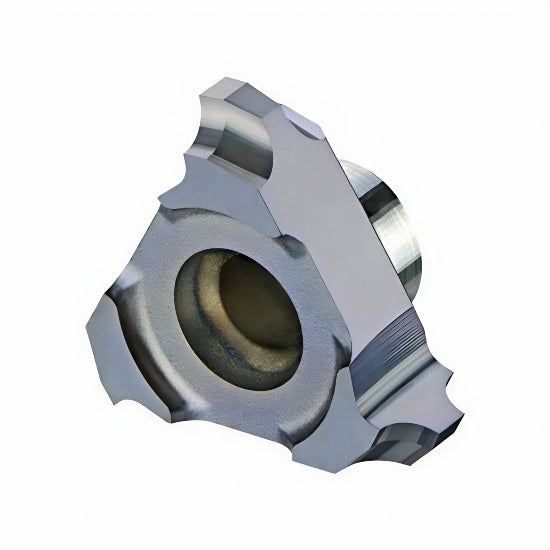

CMT Vertical Milling Tool – C18 Insert, Internal Threading for ISO Full Profile

The CMT C18 Vertical Milling Tool is designed for precision internal thread milling operations, delivering exceptional performance and repeatability. Built for use with C18 inserts, it is a reliable solution for full-profile ISO threads in demanding CNC vertical milling applications. With a cutting diameter of 17.8 mm and a two-tooth design, the tool promotes excellent chip evacuation and accuracy in confined or deep-threading scenarios.

Utilizing the MT7 carbide grade with a titanium aluminium nitride multi-layer coating (ISO K10–K20), the tool supports high-speed machining while ensuring outstanding wear resistance and surface finish. The internal coolant delivery and precision clamping system contribute to enhanced thermal control and consistent performance.

Key Features:

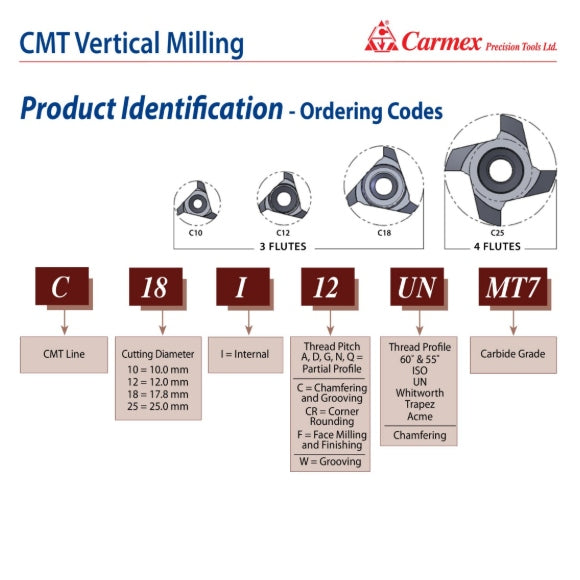

  • Ordering code: C18I20ISOMT7
  • Tool Type: CMT Vertical Milling – Internal Threading
  • Insert Type: C18

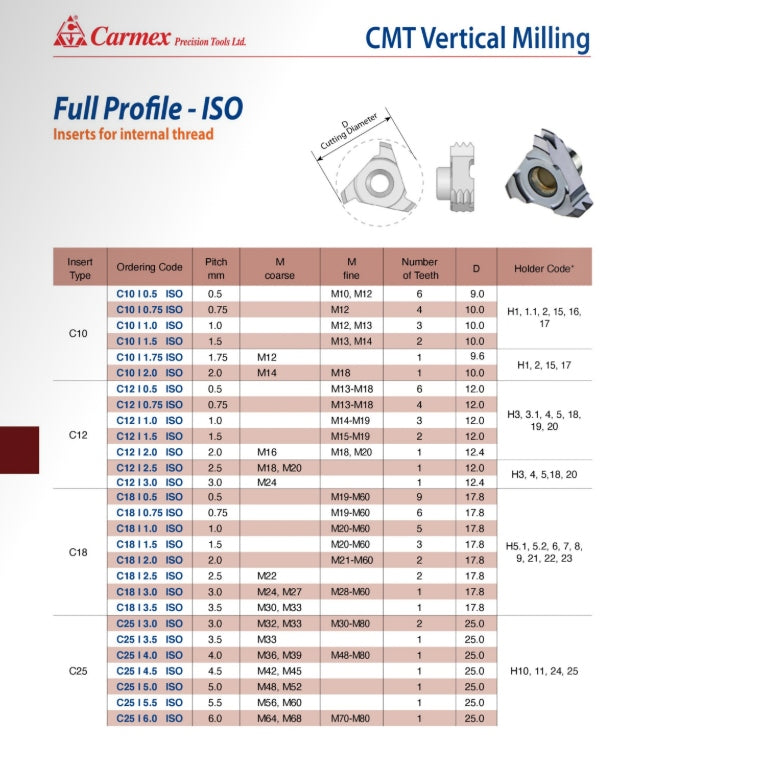

  • Thread Sizes:
    • M Fine: M21-M60
  • Cutting Diameter (D): 17.8 mm
  • Number of Teeth: 2
  • Pitch: 2.0 mm
  • Carbide Grade: MT7
  • Coolant: Internal coolant bore
  • Clamping: High-accuracy solid clamp system
  • Compatibility: Right- and left-hand thread milling
  • Holder Code: H5.1, 5.2, 6, 7, 8, 9, 21, 22, 23

Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
