Carmex Internal CMT Vertical Threadmill Insert UN 17.8mm/ 11 TPI

SKU:C18 I 11 UN MT7

Harga:
Harga penjualan$178.20

Termasuk pajak Pengiriman dihitung saat checkout

persediaan:
Hanya3 unit tersisa

Deskripsi

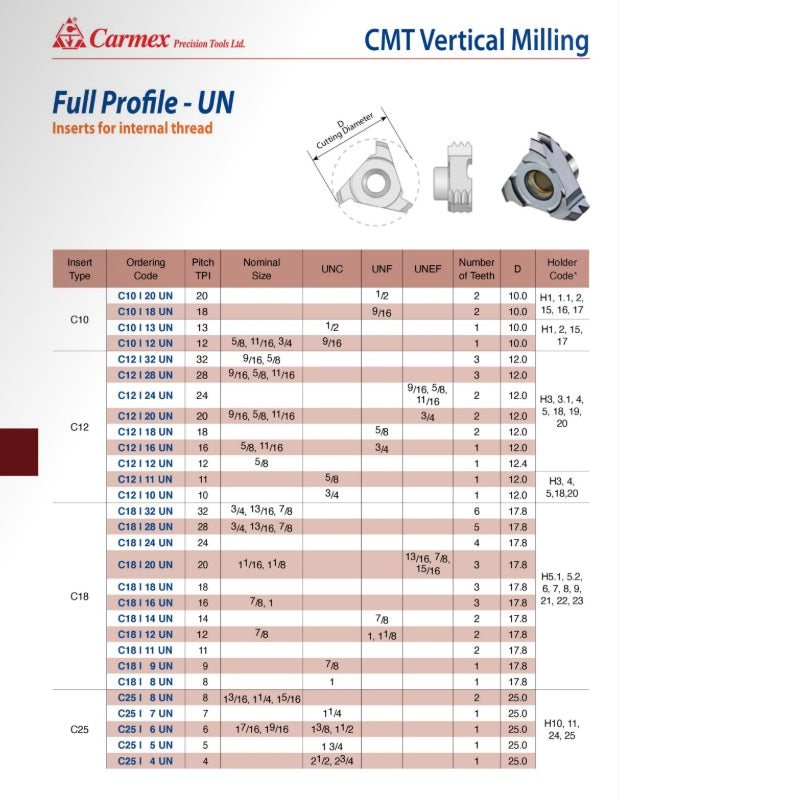

CMT Vertical Milling Tool – C18 Insert, Internal Threading for Full Profile UN Threads

The CMT C18 Vertical Milling Tool is designed for efficient internal thread milling of Unified National (UN) full-profile threads. Engineered to accommodate C18 inserts, this tool offers excellent chip evacuation and performance in coarse-pitch thread applications. With a cutting diameter of 17.8 mm and a two-tooth design, it enables faster machining with balanced cutting forces and increased productivity.

Crafted with MT7 carbide grade and coated in a titanium aluminum nitride multi-layer (ISO K10–K20), this tool delivers high wear resistance, thermal stability, and long tool life across various materials. Internal coolant capability and solid clamping provide dependable repeatability in demanding CNC machining environments.

Key Features:

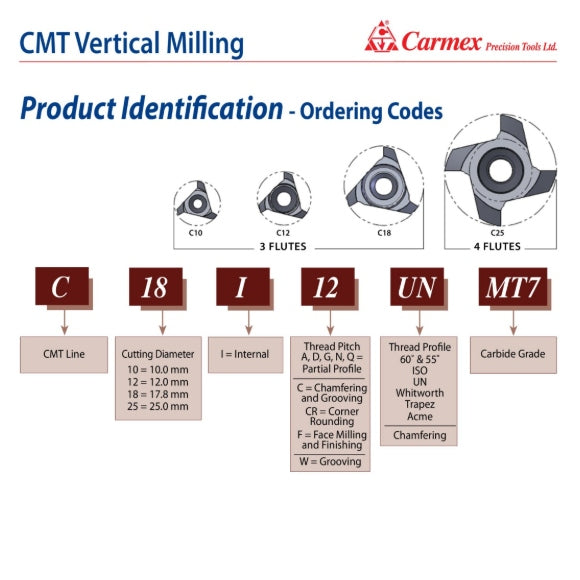

  • Ordering code: C18I11UNMT7
  • Tool Type: CMT Vertical Milling – Internal Threading
  • Insert Type: C18
  • Cutting Diameter (D): 17.8 mm
  • Number of Teeth: 2
  • Pitch: 11 TPI
  • Carbide Grade: MT7
  • Coolant: Internal coolant bore
  • Clamping: High-accuracy solid clamp system
  • Compatibility: Right- and left-hand thread milling
  • Holder Code: H5.1, 5.2, 6, 7, 8, 9, 21, 22, 23

Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
