Carmex Internal CMT Vertical Threadmill Insert UN 17.8mm/ 14 TPI

SKU:C18 I 14 UN MT7

Harga:
Harga penjualan$178.20

Termasuk pajak Pengiriman dihitung saat checkout

persediaan:
Hanya3 unit tersisa

Deskripsi

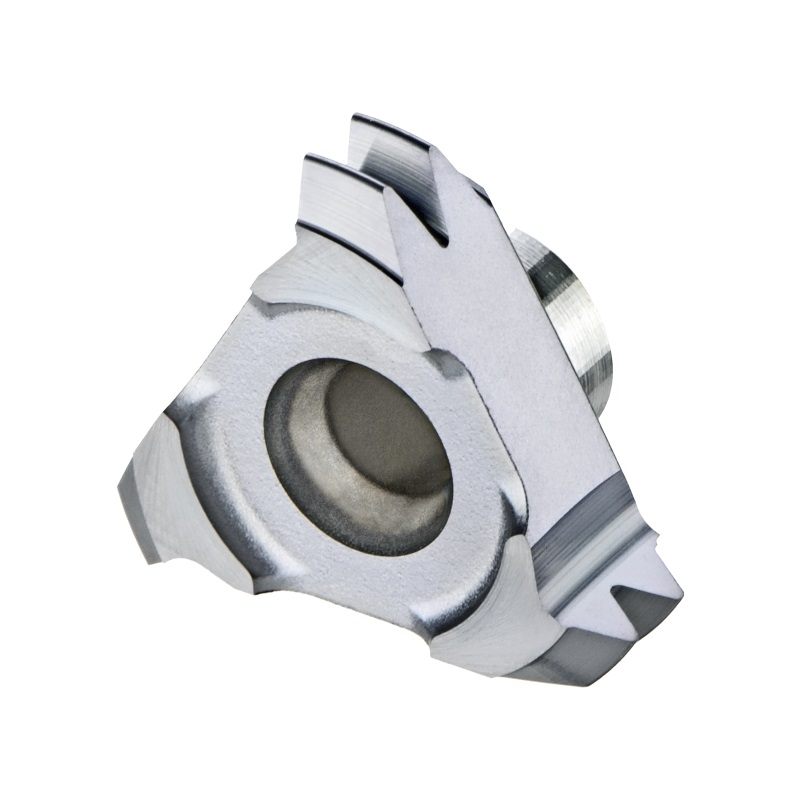

CMT Vertical Milling Tool – C18 Insert, Internal Threading for Full Profile UN Threads

The CMT C18 Vertical Milling Tool is engineered for high-precision internal thread milling of Unified National (UN) full-profile threads. Designed for use with C18 inserts, this tool is ideal for producing accurate and consistent UNF 7/8" threads in demanding vertical milling applications. With a cutting diameter of 17.8 mm, it ensures clean chip evacuation and excellent thread quality.

Constructed with MT7 carbide grade, which features a titanium aluminum nitride multi-layer coating (ISO K10–K20), the tool provides exceptional wear resistance and surface finish at high speeds. An internal coolant bore and precision clamping system support repeatable performance and thermal stability across a wide range of machining environments.

Key Features:

  • Ordering code: C18I14UNMT7
  • Tool Type: CMT Vertical Milling – Internal Threading
  • Insert Type: C18
  • Thread Specification:
    • UNF: 7/8"
  • Cutting Diameter (D): 17.8 mm
  • Number of Teeth: 2
  • Pitch: 14 TPI
  • Carbide Grade: MT7
  • Coolant: Internal coolant bore
  • Clamping: High-accuracy solid clamp system
  • Compatibility: Right- and left-hand thread milling
  • Holder Code: H5.1, 5.2, 6, 7, 8, 9, 21, 22, 23

Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
