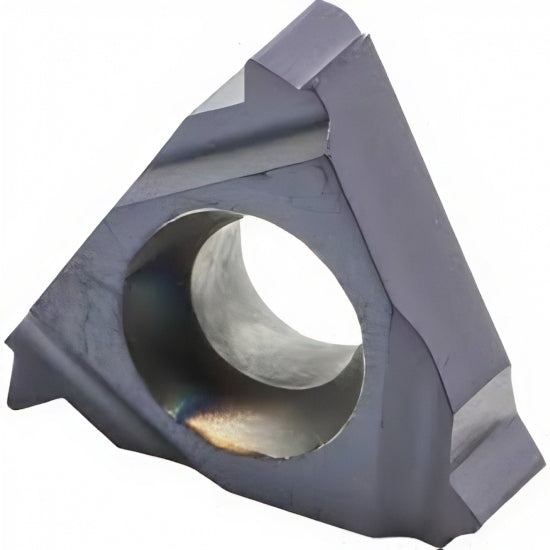

Internal Right Hand Hughes Thread Turning Insert 3 TPI
The Carmex Internal Right Hand Hughes Thread Turning Insert is engineered for machining Hughes SLH-90 thread forms, commonly used in oilfield drill pipe connections and heavy-duty downhole tool applications. With a coarse pitch of 3 TPI, this insert forms the entire thread geometry including the root, crest, and flanks in a single efficient pass, ensuring high productivity in demanding threading operations.
Constructed from premium BMA-grade carbide, this insert delivers exceptional wear resistance, edge toughness, and thermal stability in harsh machining environments. The precision-ground profile and optimized X and Y dimensions ensure clean cutting action, accurate thread form, and reliable chip control even in deep-hole threading applications.

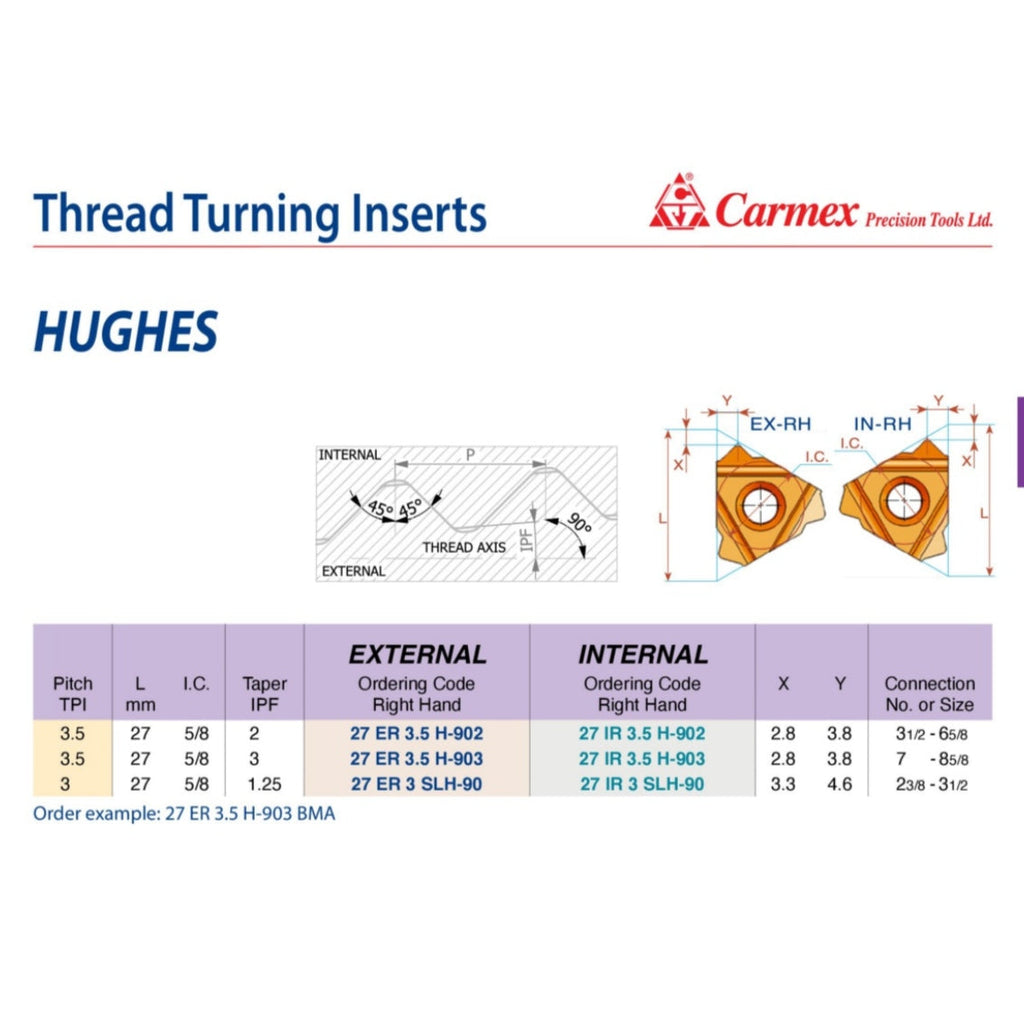

Key Features:
- Ordering Code: 27 IR 3 SLH-90 BMA
- Thread Type: Hughes SLH-90
- Profile: Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 27 mm
- I.C.: 5/8"
- Pitch (TPI): 3
- Taper (IPF): 1.25
- X: 3.3 mm
- Y: 4.6 mm
- Carbide Grade: BMA
- Connection Size Range: 2⅜" – 3½"
- Applications: Internal threading for Hughes SLH-90 drill pipe connections and oilfield tool joints
- Key Advantage: High-strength, full-profile threading with superior wear resistance for heavy-duty, high-torque connections
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
