Deskripsi

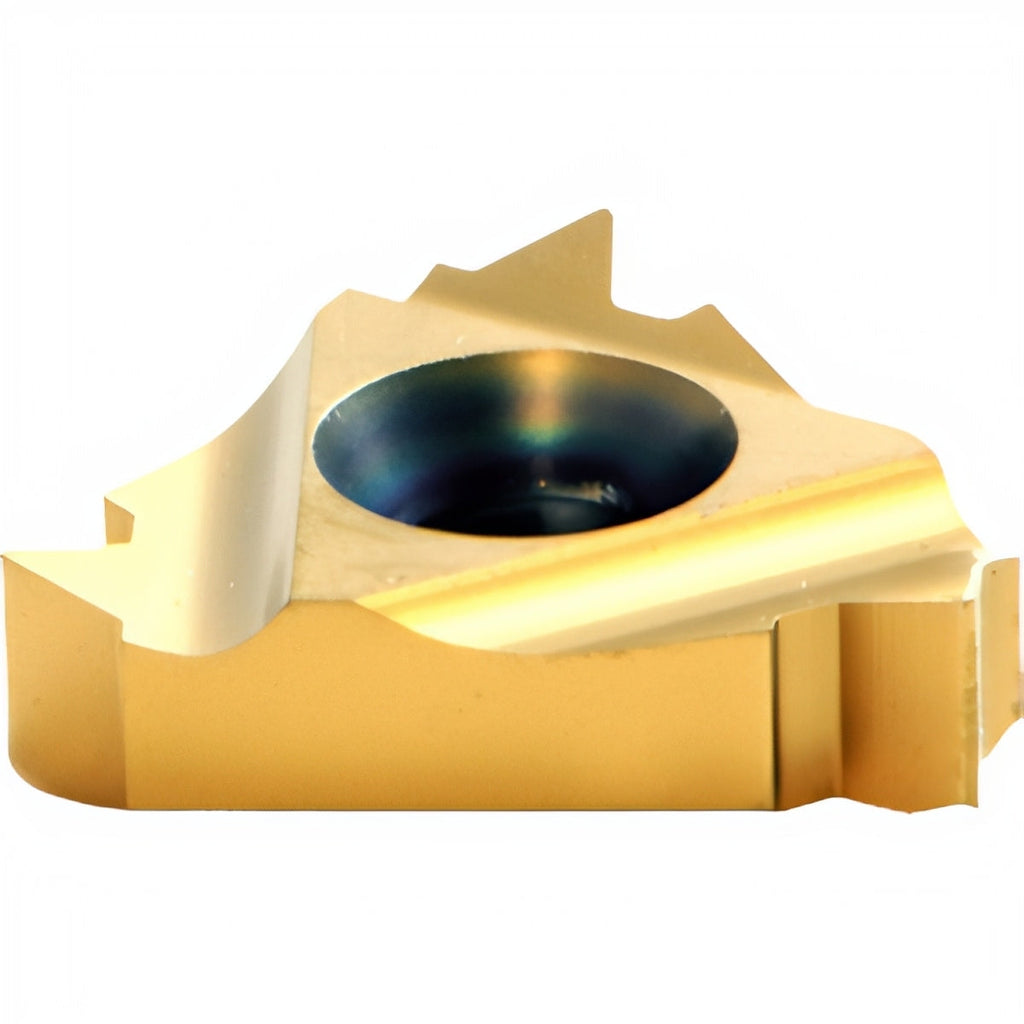

External Thread Turning Insert – Whitworth Full Profile 55°
The Whitworth Full Profile External Thread Turning Insert is designed for precision threading of 55° British Standard thread forms such as BSW, BSF, BSP, and BSB. With a pitch of 19 TPI, this insert forms the complete thread geometry—crest, root, and flanks—in a single pass, ensuring accurate and consistent threads for high-performance external applications.
Manufactured from robust P25C-grade carbide, this insert offers excellent wear resistance and toughness, making it well-suited for a wide range of general-purpose materials. The optimized X and Y geometry ensures smooth cutting engagement, chip evacuation, and prolonged tool life in continuous machining environments.
Key Features:

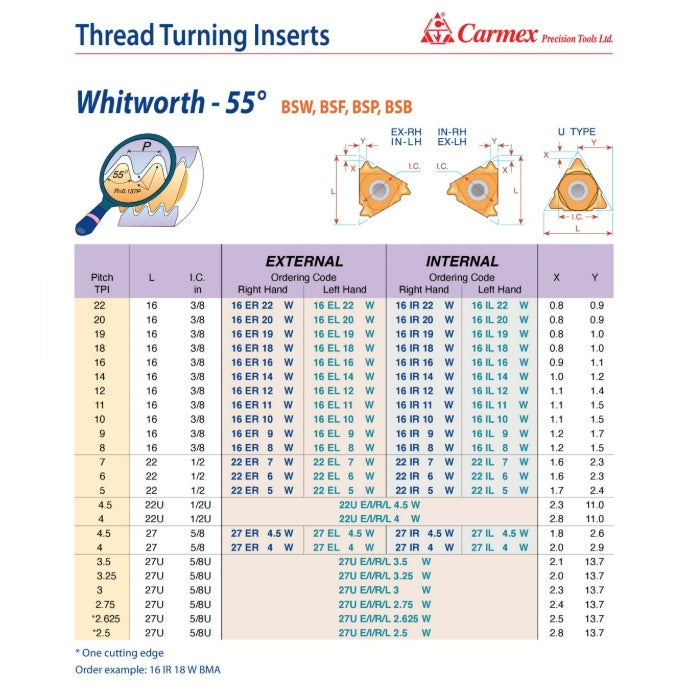

- Ordering Code: 16 ER 19 W P25C
- Thread Type: Whitworth (BSW, BSF, BSP, BSB – 55°)
- Profile: 55° Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 19 TPI
- X: 0.8 mm
- Y: 1.0 mm
- Carbide Grade: P25C
- Applications: External Thread Turning for Whitworth Thread Standards
- Key Advantage: Full-profile 55° threading with high accuracy and strong wear resistance for industrial-grade threads
Manufactured by Carmex Precision Tools Ltd.—a global leader in threading tool innovation—this insert is part of a complete lineup including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex products are trusted worldwide for delivering precision, quality, and durability in demanding machining environments.
