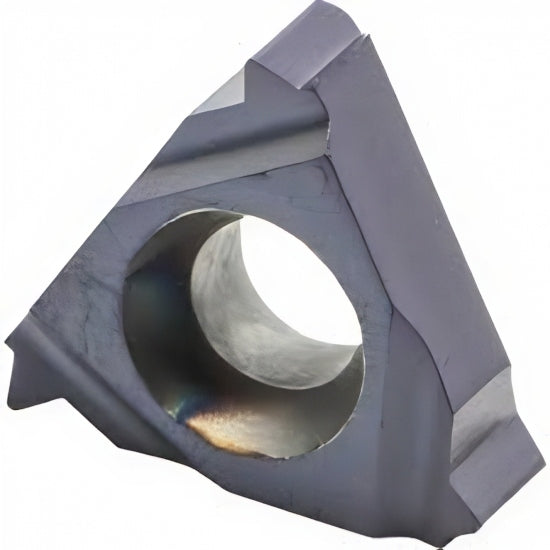

Internal Thread Turning Insert – Whitworth 55°
The Whitworth Internal Thread Turning Insert is designed for producing British Standard threads including BSW, BSF, BSP, and BSB with a precise 55° thread profile. This full-profile insert is optimized for 14 TPI, forming the crest, root, and flanks of the thread in a single pass. It is ideal for threading applications in piping systems, mechanical joints, and traditional British-standard fasteners.
Constructed from premium BMA-grade carbide, this insert offers superior wear resistance, thermal stability, and cutting edge retention. With geometry dimensions of X = 1.0 mm and Y = 1.2 mm, it ensures accurate internal threading performance, excellent surface finish, and consistent profile accuracy.

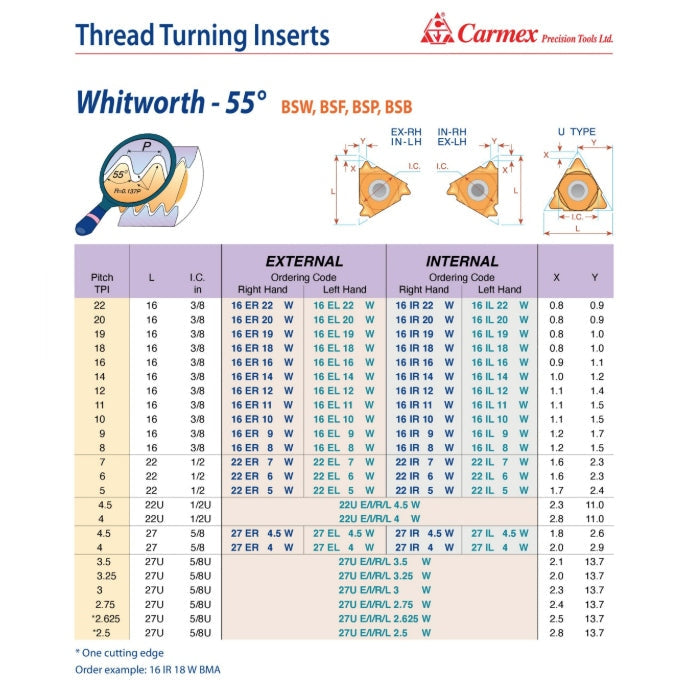

Key Features:
- Ordering Code: 16 IR 14 W BMA
- Thread Type: Whitworth (BSW, BSF, BSP, BSB)
- Profile: 55° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 14 TPI
- X: 1.0 mm
- Y: 1.2 mm
- Carbide Grade: BMA
- Applications: Internal Thread Turning for Whitworth Standard Threads in piping, mechanical, and industrial applications
- Key Advantage: Full-profile threading with traditional British thread form accuracy and long-lasting tool performance
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
