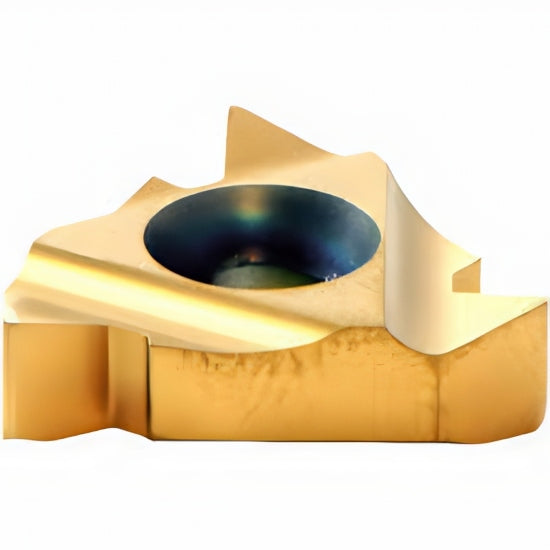

Internal Thread Turning Insert – Whitworth 55°
The Whitworth Internal Thread Turning Insert is specifically designed for producing precise British Standard thread forms BSW, BSF, BSP, and BSB with a 55° profile. Optimized for 19 TPI, this full-profile insert forms the entire thread geometry including crest, root, and flanks in one efficient pass. It is ideal for threading pipe fittings, fasteners, and mechanical assemblies that require the Whitworth standard.
Manufactured from high-performance P25C-grade carbide, the insert delivers exceptional wear resistance, thermal control, and consistent edge quality. With X and Y dimensions of 0.8 mm and 1.0 mm respectively, it ensures stable internal threading in medium-sized bores, offering excellent profile precision and tool life.
Key Features:
- Ordering Code: 16 IR 19 W P25C
- Thread Type: Whitworth (BSW, BSF, BSP, BSB)
- Profile: 55° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 19 TPI
- X: 0.8 mm
- Y: 1.0 mm
- Carbide Grade: P25C
- Applications: Internal Thread Turning for Whitworth Threads in Pipe Fittings, Fasteners, and Mechanical Components
- Key Advantage: Full-profile threading with outstanding wear resistance and accuracy for Whitworth standard threads
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
