Carmex Internal Right Hand Whitworth Thread Turning Insert 28 TPI / 16 IR 28 W P25C

SKU:16 IR 28 W P25C

Harga:
Harga penjualan$26.60

Termasuk pajak Pengiriman dihitung saat checkout

persediaan:
Hanya10 unit tersisa

Deskripsi

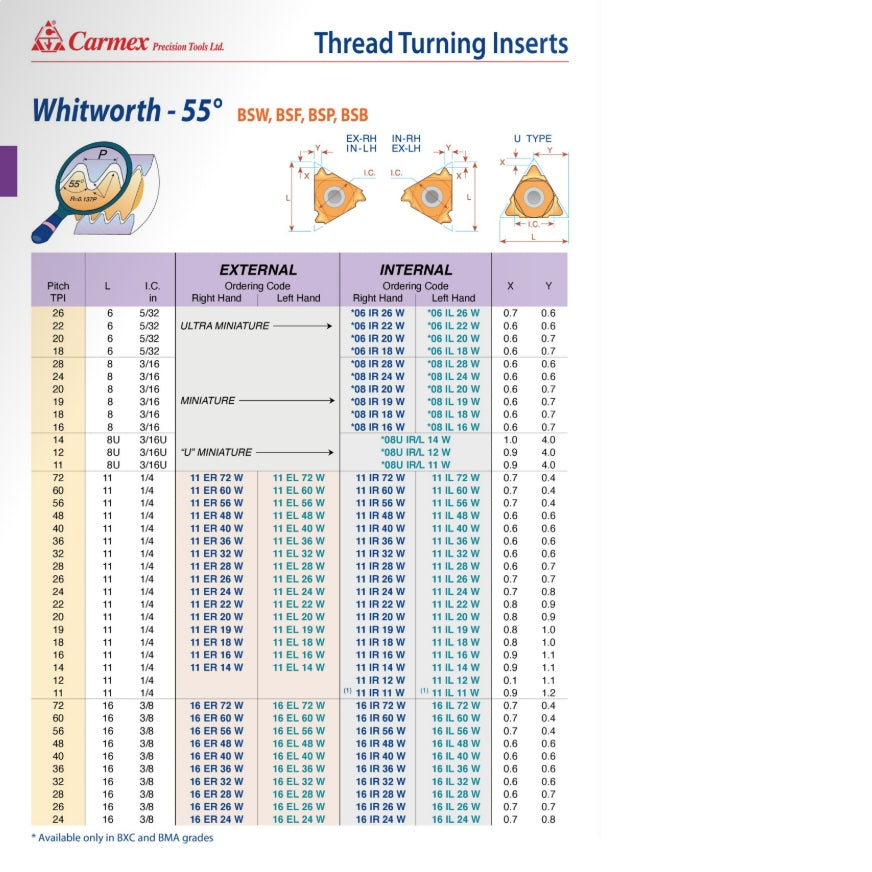

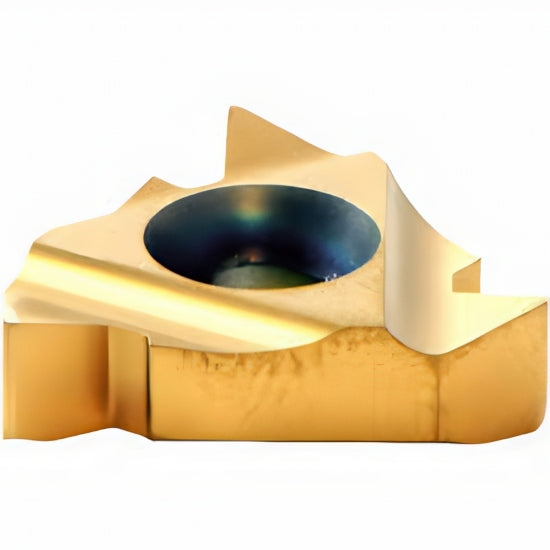

Internal Thread Turning Insert – Whitworth 55°

The Whitworth Internal Thread Turning Insert is engineered for the precision machining of British Standard threads, including BSW, BSF, BSP, and BSB. Designed for fine-pitch 28 TPI threads, this full-profile insert accurately forms the entire thread geometry crest, root, and flanks in a single pass. It is ideal for applications requiring high thread fidelity in small to medium bore components.

Manufactured from durable P25C-grade carbide, the insert provides excellent wear resistance, edge strength, and thermal stability. With X = 0.6 mm and Y = 0.7 mm, this insert is well-suited for internal threading of fine threads in compact parts, offering consistent performance and high-quality finishes.

Key Features:

  • Ordering Code: 16 IR 28 W P25C
  • Thread Type: Whitworth (BSW, BSF, BSP, BSB)
  • Profile: 55° Full Form
  • Insert Type: Internal
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Pitch: 28 TPI
  • X: 0.6 mm
  • Y: 0.7 mm
  • Carbide Grade: P25C
  • Applications: Internal Thread Turning for Fine-Pitch Whitworth Threads in Precision Components
  • Key Advantage: High-accuracy full-profile threading for fine threads with long tool life and excellent surface finish

Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
