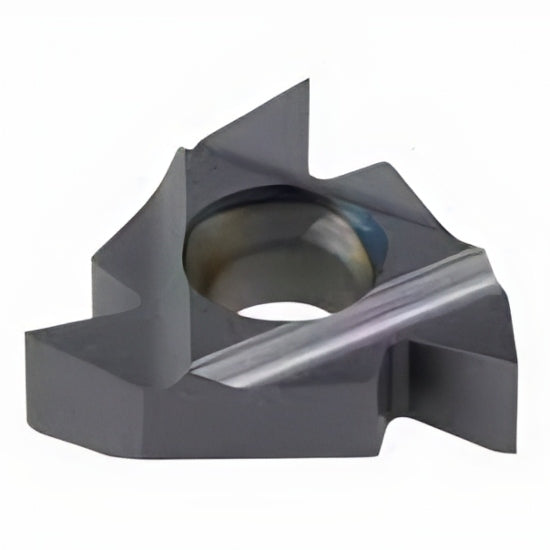

Internal Thread Turning Insert – Whitworth 55°
The Whitworth Internal Thread Turning Insert is specifically designed for producing accurate British Standard thread forms such as BSW, BSF, BSP, and BSB with a 55° profile. Optimized for 9 TPI threads, this full-profile insert machines the entire thread geometry including crest, root, and flanks in a single pass, ensuring strong, leak-proof threads for mechanical and fluid system applications.
Made from high-performance BMA-grade carbide, the insert offers outstanding wear resistance, heat stability, and edge retention. With dimensions of X = 0.8 mm and Y = 1.0 mm, it delivers precise internal threading in medium-sized bores with reliable chip control and long tool life.
Key Features:

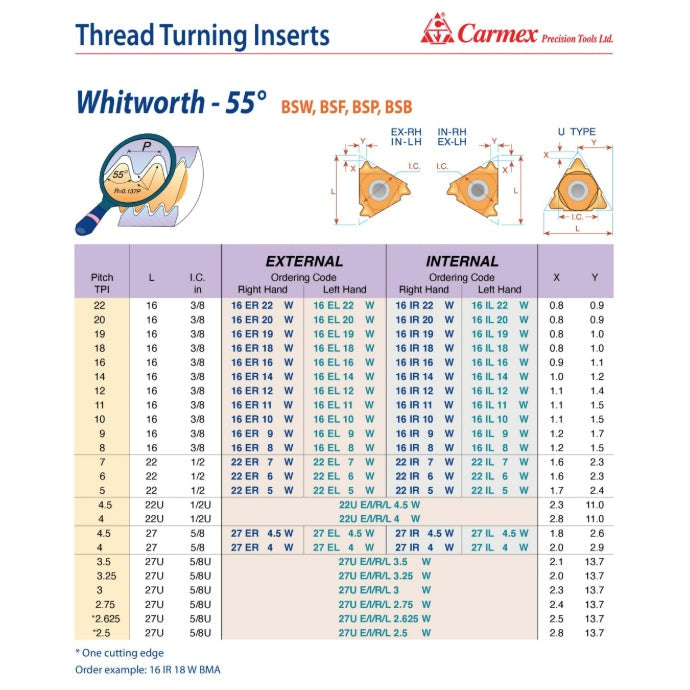

- Ordering Code: 16 IR 9 W BMA
- Thread Type: Whitworth (BSW, BSF, BSP, BSB)
- Profile: 55° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 9 TPI
- X: 0.8 mm
- Y: 1.0 mm
- Carbide Grade: BMA
- Applications: Internal Thread Turning for Whitworth Threads in Mechanical and Piping Components
- Key Advantage: Full-profile threading with excellent dimensional control, surface quality, and tool durability
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
