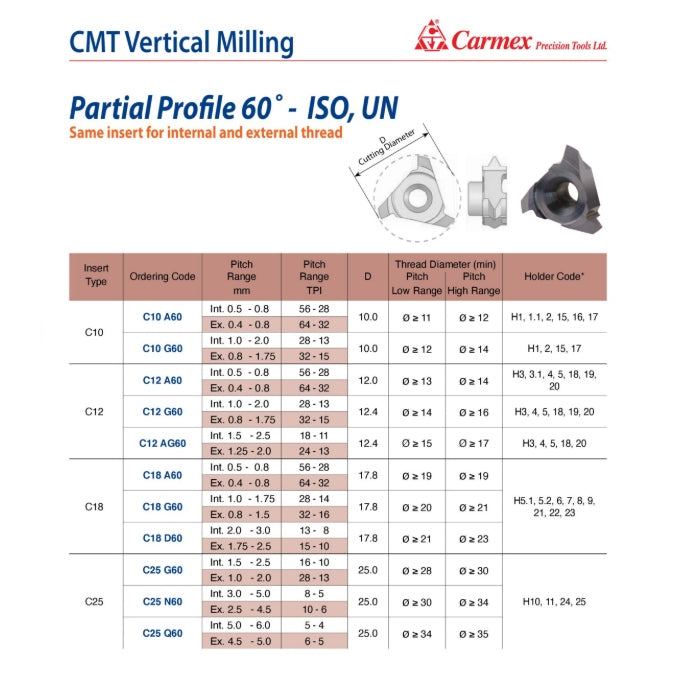

CMT Vertical Milling Tool – C18 Insert, Partial Profile 60° for ISO and UN Threads
The CMT C18 Vertical Milling Tool with Partial Profile 60° inserts is a versatile solution for both internal and external threading applications in ISO and UN standards. Utilizing the C18G60 insert, this tool supports a wide pitch range and thread diameters, making it ideal for flexible production needs. With a cutting diameter of 17.8 mm, it is engineered to deliver precision and clean thread geometry across various thread types.
The insert accommodates internal pitch ranges of 1.0–1.75 mm (28–14 TPI) and external pitches of 0.8–1.5 mm (32–16 TPI). Minimum thread diameters begin at ⌀20 mm for low-range pitches and ⌀21 mm for high-range pitches, supporting a broad array of thread specifications.
Made from MT7 carbide grade and coated with titanium aluminum nitride (ISO K10–K20), the insert provides excellent durability, heat resistance, and surface finish in high-speed cutting environments. Designed for use with holders supporting internal coolant and robust clamping, the tool ensures consistent performance and repeatability.
Key Features:

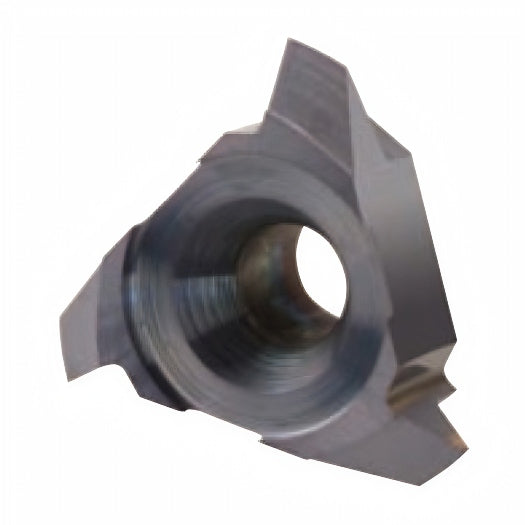

- Ordering code: C18G60MT7
- Tool Type: CMT Vertical Milling – Internal and External Threading
- Insert Type: C18
- Thread Profile: 60° Partial Profile – ISO, UN
-
Pitch Range:
- Internal: 1.0 – 1.75 mm (28 – 14 TPI)
- External: 0.8 – 1.5 mm (32 – 16 TPI)
- Cutting Diameter (D): 17.8 mm
-
Minimum Thread Diameter:
- Low Range Pitch: ⌀≥20 mm
- High Range Pitch: ⌀≥21 mm
- Carbide Grade: MT7
- Coolant: Internal coolant compatible
- Clamping: High-accuracy solid clamp system

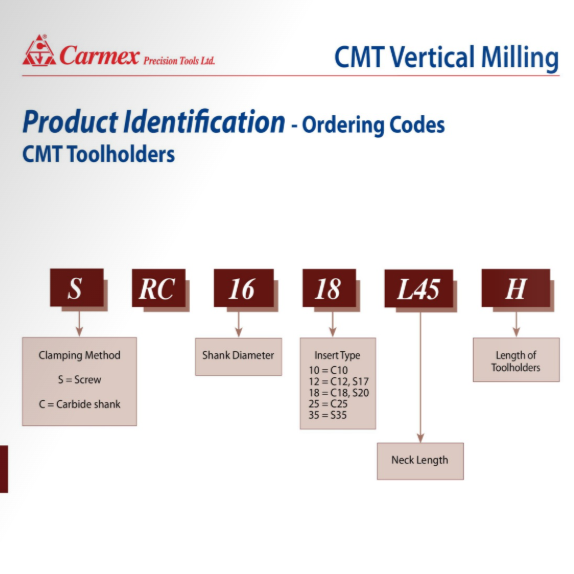

- Holder Code: H5.1, 5.2, 6, 7, 8, 9, 21, 22, 23
Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
