Description

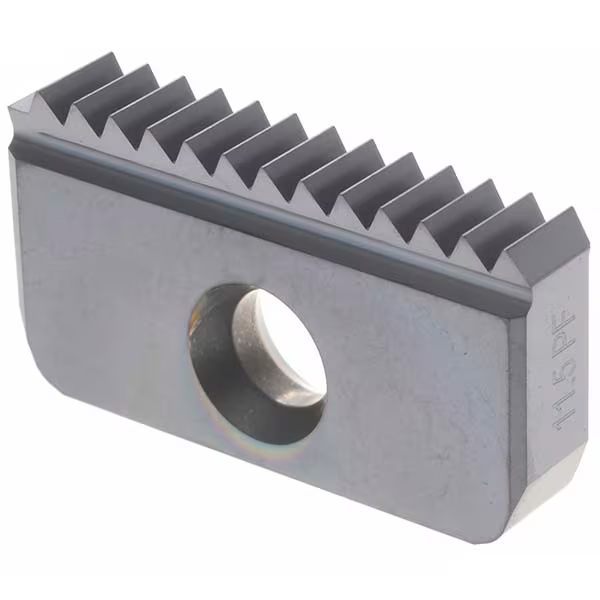

Mill-Thread Insert – ISO 5.5 mm Pitch, Internal
The 40 I 5.5 ISO MT7 Mill-Thread Insert is engineered for internal threading of ISO metric profiles on CNC milling machines using helical interpolation. Designed for a coarse 5.5 mm pitch, this insert is ideal for producing strong, wide threads in heavy-duty or large-diameter components. With a size 40 body, 20 mm height, and 6.3 mm thickness, it ensures excellent rigidity, chip evacuation, and thread form accuracy during high-load cutting conditions.
Made from Carmex’s advanced MT7 carbide grade, the insert provides excellent wear resistance, heat tolerance, and extended tool life across production applications. It is fully compatible with the SR series toolholders from Carmex available in single, twin, and multi-insert options, with carbide shank and internal coolant features to enhance tool stability and machining efficiency.
Key Features:

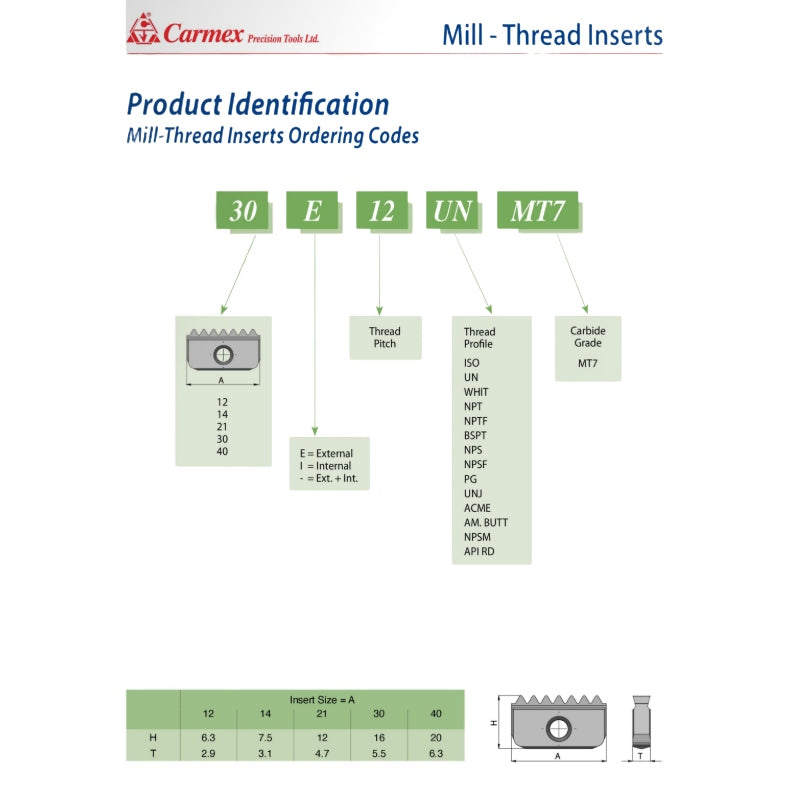

- Ordering Code: 40 I 5.5 ISO MT7
- Thread Type: Internal Threading

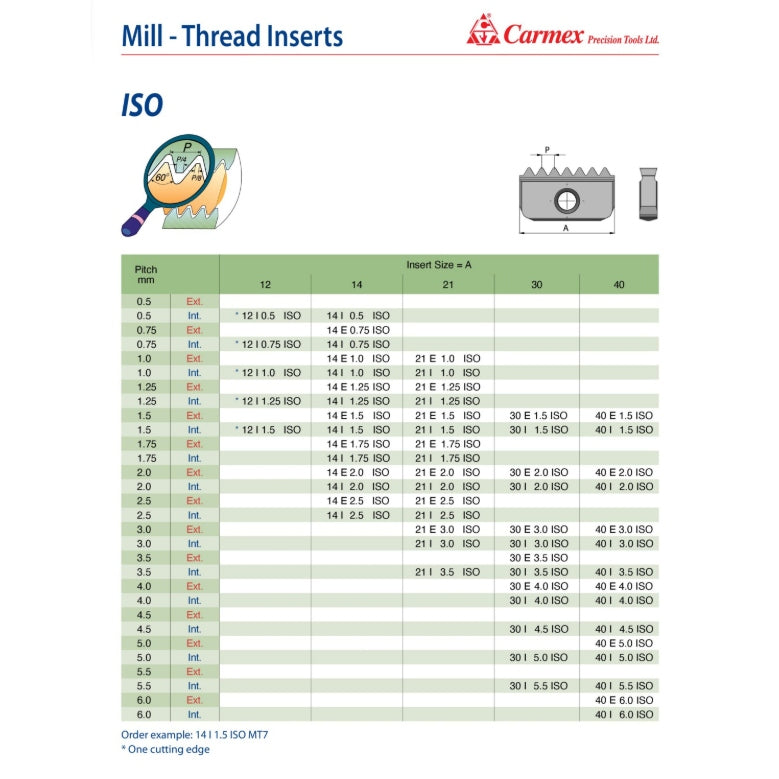

- Thread Profile: ISO – Metric
- Pitch (mm): 5.5
- Insert Size: 40
- H (Height): 20 mm
- T (Thickness): 6.3 mm
- Carbide Grade: MT7
- Insert Type: Internal-use only
- Applications: Large-pitch ISO metric internal threads for industrial or structural assemblies
- Key Advantage: Heavy-duty threading solution with compatibility to SR series toolholders
Carmex Precision Tools Ltd. is globally recognized for its advanced threading solutions. The company offers a full range of Thread Turning inserts, Mill-Thread tools, Spiral Mill-Thread, Solid Carbide threadmills, and SR Series Toolholders ensuring complete performance and compatibility from insert to toolholder.
