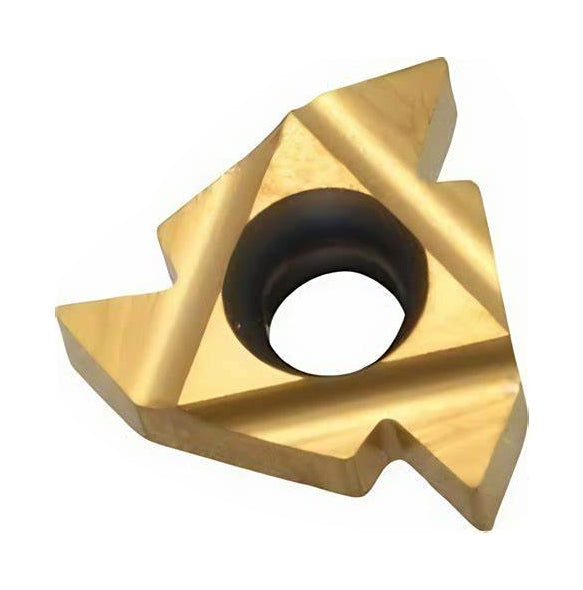

Internal Thread Turning Insert – ISO Full Profile 60°
The ISO Full Profile Internal Thread Turning Insert is built for precision machining of metric thread profiles in accordance with ISO standards. With a 3.5 mm pitch and a 60° profile, this insert ensures full thread formation—including crest, root, and flanks—in a single pass, offering reliability in both light and heavy-duty threading operations.
Crafted from robust P25C-grade carbide, this insert offers superior wear resistance, thermal stability, and edge integrity. The optimized 1.2 mm X and 1.7 mm Y dimensions enhance thread definition, ensure chip control, and deliver consistent results across a wide range of materials and cutting environments.
Key Features:

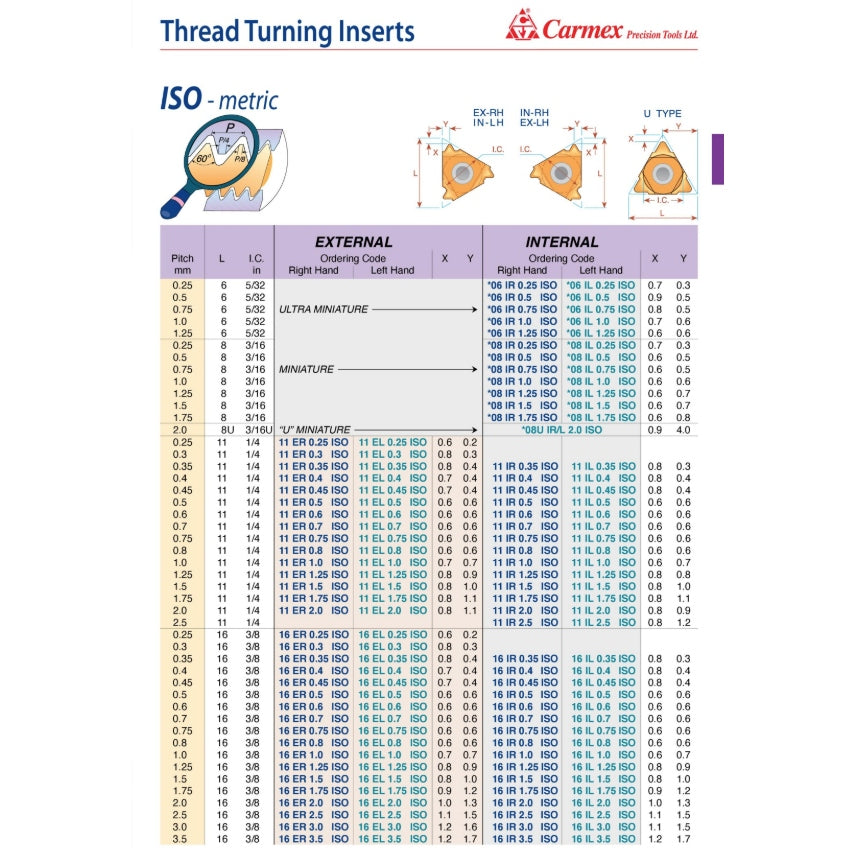

- Ordering Code: 16 IR 3.5 ISO P25C
- Thread Type: ISO (Metric Thread Standard – 60°)
- Profile: 60° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 3.5 mm
- X: 1.2 mm
- Y: 1.7 mm
- Carbide Grade: P25C
- Applications: Internal Thread Turning for ISO Metric Threads
- Key Advantage: Full-profile threading with excellent chip evacuation and tool durability in coarse-pitch threads
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
