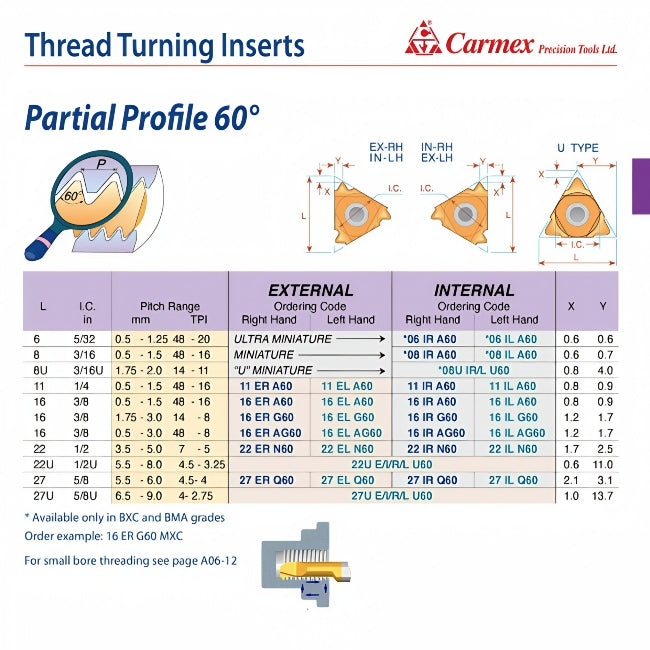

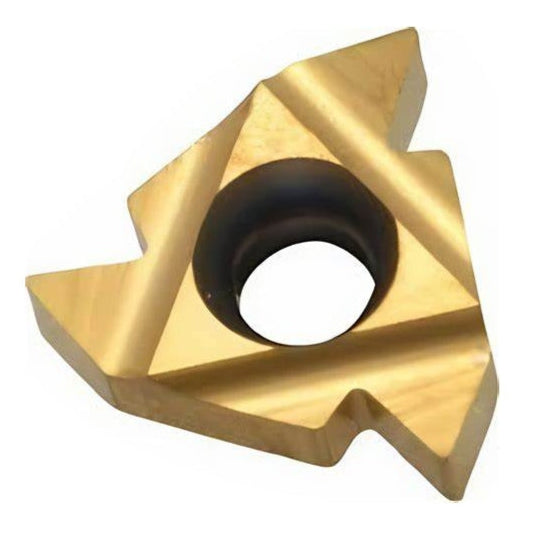

Internal Thread Turning Insert – 60° Partial Profile
The 60° Partial Profile Internal Thread Turning Insert is designed for versatile internal threading across multiple thread types, including ISO, UN, and NPT standards. With a pitch range of 0.5 to 3.0 mm (48–8 TPI), this insert is ideal for general-purpose threading tasks that require flexibility without sacrificing precision.
Crafted from high-performance P25C-grade carbide, this insert offers excellent resistance to wear, built-in lubricity, and enhanced performance when threading difficult materials. The partial profile design allows for multi-pitch capability, while the X and Y geometry (1.2 mm and 1.7 mm) ensures stable cutting action and consistent thread quality.
Key Features:
- Ordering Code: 16 IR AG60 P25C
- Thread Type: 60° (ISO/UN/NPT)
- Profile: 60° Partial Profile
- Insert Type: Internal
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch Range (mm): 0.5 – 3.0
- Pitch Range (TPI): 48 – 8
- X: 1.2 mm
- Y: 1.7 mm
- Carbide Grade: P25C
- Applications: Internal Thread Turning for ISO/UN/NPT Thread Forms
- Key Advantage: Multi-pitch threading with superior tool life, chip control, and performance in tough materials
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
