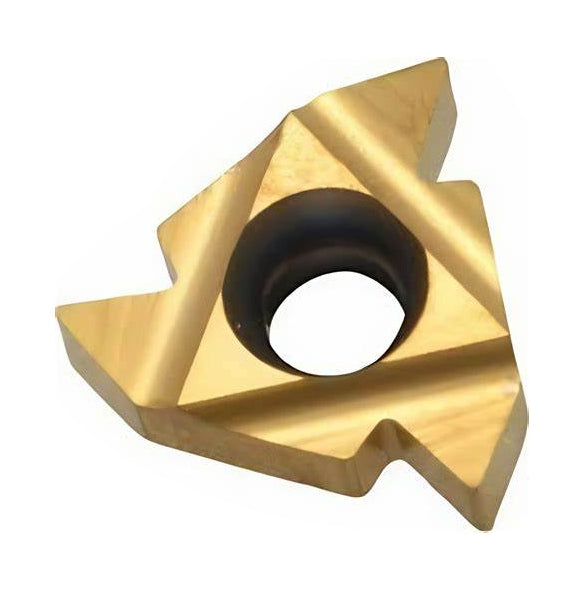

External Thread Turning Insert – Stub ACME Full Profile
The Stub ACME Full Profile External Thread Turning Insert is specifically designed for producing Stub ACME threads with high efficiency and precision. Featuring a 29° thread angle and a 6 TPI pitch, this insert forms the full thread geometry—including crest, root, and flanks—in a single pass, making it ideal for high-load power transmission and motion control applications.
Manufactured from durable P25C-grade carbide, the insert delivers excellent wear resistance, thermal stability, and toughness, especially when machining challenging materials like steels and alloys. Precisely engineered X and Y dimensions enhance chip control and cutting engagement, ensuring smooth, consistent threading results.
Key Features:

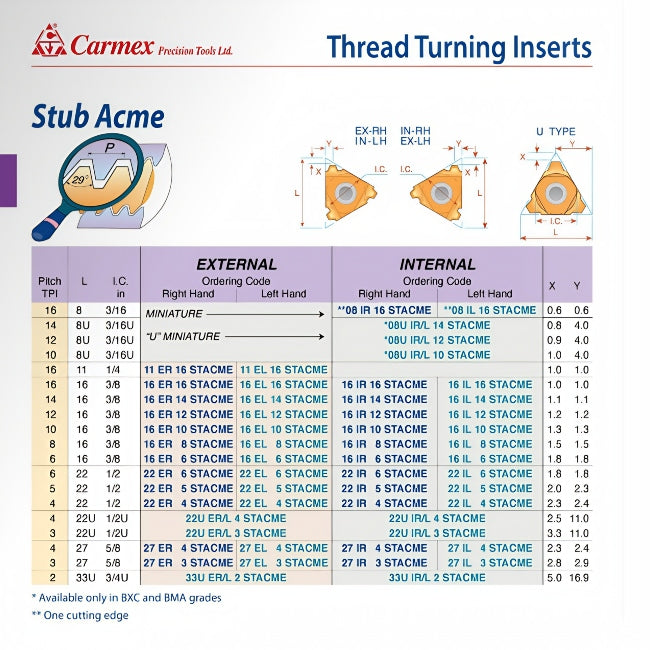

- Ordering Code: 16 ER 6 STACME P25C
- Thread Type: Stub ACME (29°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 6 TPI
- X: 1.8 mm
- Y: 1.8 mm
- Carbide Grade: P25C
- Applications: External Thread Turning for Stub ACME thread forms
- Key Advantage: Full-profile threading with enhanced durability for heavy-load thread systems
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
