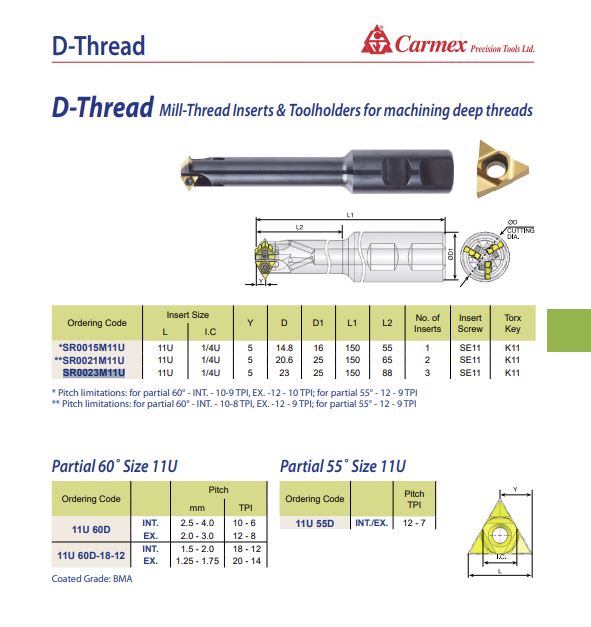

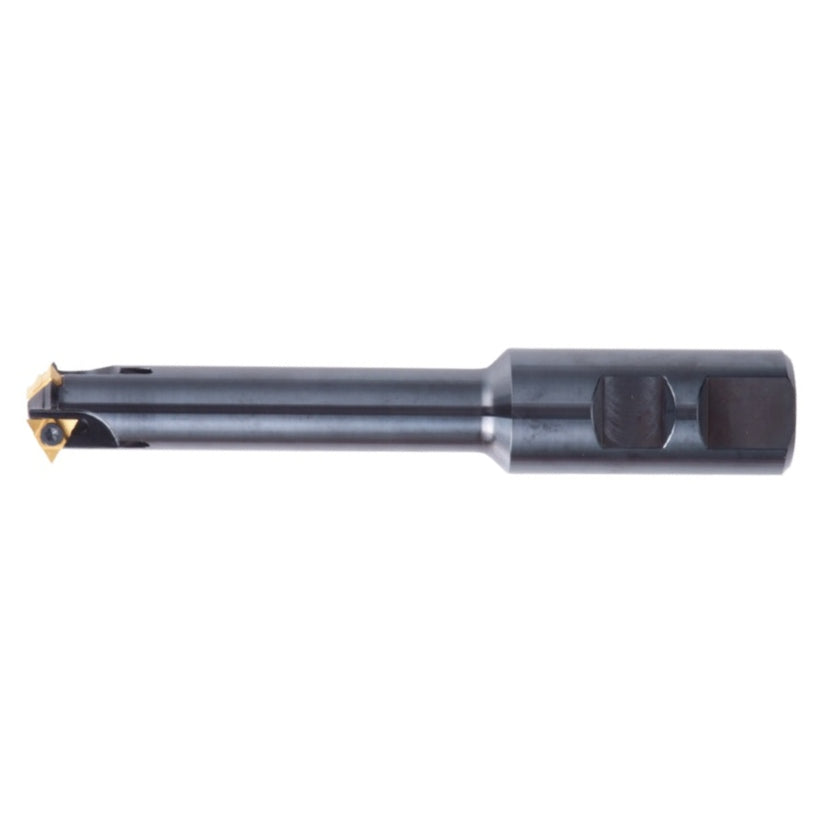

D-Thread Toolholder – SR0023M11U, 11U Insert Size for Deep Threading
The SR0023M11U D-Thread Toolholder is built for machining deep internal and external threads with high precision and stability. Designed for use with 11U partial profile inserts, this toolholder supports threading pitches across both 60° and 55° thread forms, making it suitable for a wide range of industrial threading applications. Its extended shank and internal coolant delivery system enhance chip evacuation and thermal control, ideal for high-performance deep thread milling.
Engineered with a 23 mm cutting diameter and 25 mm shank (D1), this holder ensures robust engagement with the workpiece. The tool features a 150 mm body length and dual-insert configuration, supporting superior rigidity and consistent thread profiles over long cutting distances.
Key Features:

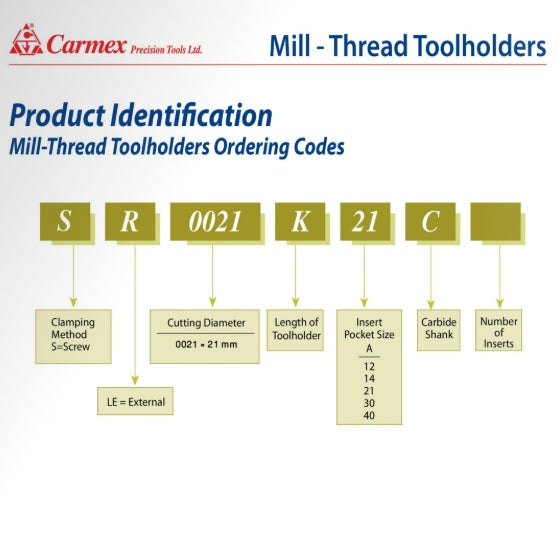

- Ordering Code: SR0023M11U
- Toolholder Type: D-Thread, Long Shank with Internal Coolant
-
Insert Size:
- L: 11U
- I.C: 1/4U
- Cutting Diameter (D): 23 mm
- Shank Diameter (D1): 25 mm
- Overall Length (L1): 150 mm
- Neck Length (L2): 88 mm
- No. of Inserts: 3
- Insert Screw: SE11
- Torx Key: K11
Carmex Precision Tools Ltd. is internationally recognized for its innovative and reliable cutting solutions. Their comprehensive product portfolio includes Mill-Thread systems, D-Thread holders, Thread Turning inserts, Solid Carbide threadmills, and Grooving Tools engineered to meet the rigorous demands of modern CNC machining.
