Carmex Threadmill Long Shank Toolholder 25mm Cut. SR0025K21

SKU: SR0025K21

Price:
Sale price$809.34

Tax included Shipping calculated at checkout

Stock:
Only 2 units left

Description

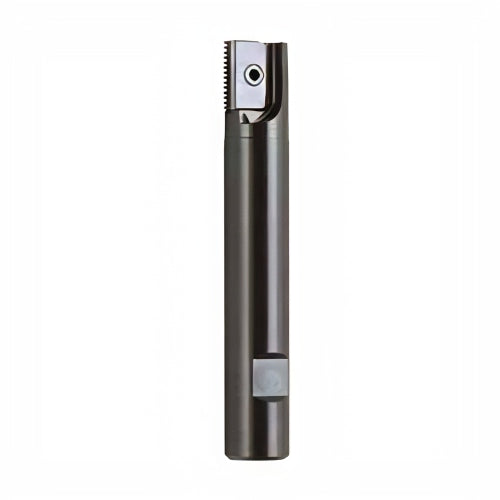

Mill-Thread Toolholder – SR0025K21, Ø25 mm, Long Shank with Internal Coolant

The SR0025K21 Mill-Thread Long Shank Toolholder is designed for extended reach applications on CNC milling machines, offering enhanced clearance and accessibility during deep-threading operations. Equipped with an internal coolant bore and a screw-style clamping system, this toolholder ensures optimal cooling and reliable insert retention under demanding cutting conditions.

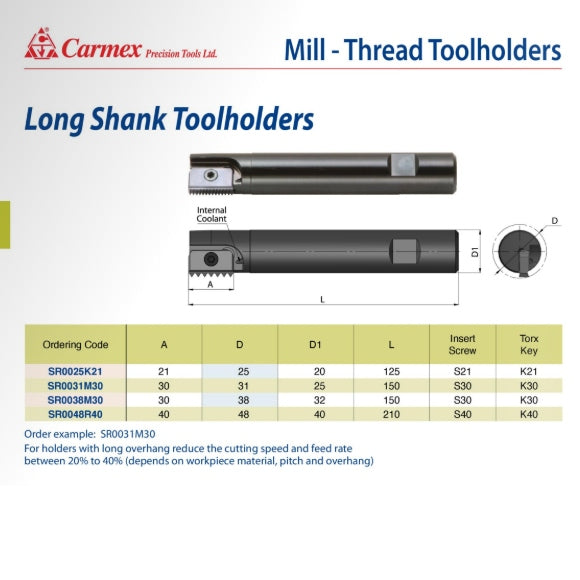

Engineered for precision and stability, it features a cutting diameter of 25 mm and supports a 21 mm insert pocket size. The holder measures 125 mm in total length, with a shank diameter (D1) of 20 mm and neck diameter (D) of 25 mm. It is secured using an S21 insert screw and compatible with a K21 Torx key—providing a robust and repeatable setup for long-reach threading applications.

Key Features:

  • Ordering Code: SR0025K21
  • Toolholder Type: Long Shank Mill-Thread
  • Coolant Supply: Internal Coolant Bore
  • Clamping Method: Screw
  • Insert Pocket Size (A): 21 mm
  • Cutting Diameter (D): 25 mm
  • Shank Diameter (D1): 20 mm
  • Total Length (L): 125 mm
  • Insert Screw: S21
  • Torx Key: K21

Carmex Precision Tools Ltd. is a world-renowned manufacturer of precision cutting tools. With advanced threading solutions including Mill-Thread holders, Solid Carbide threadmills, Spiral Mill-Thread tools, and Thread Turning inserts, Carmex delivers cutting-edge performance across modern machining operations.
