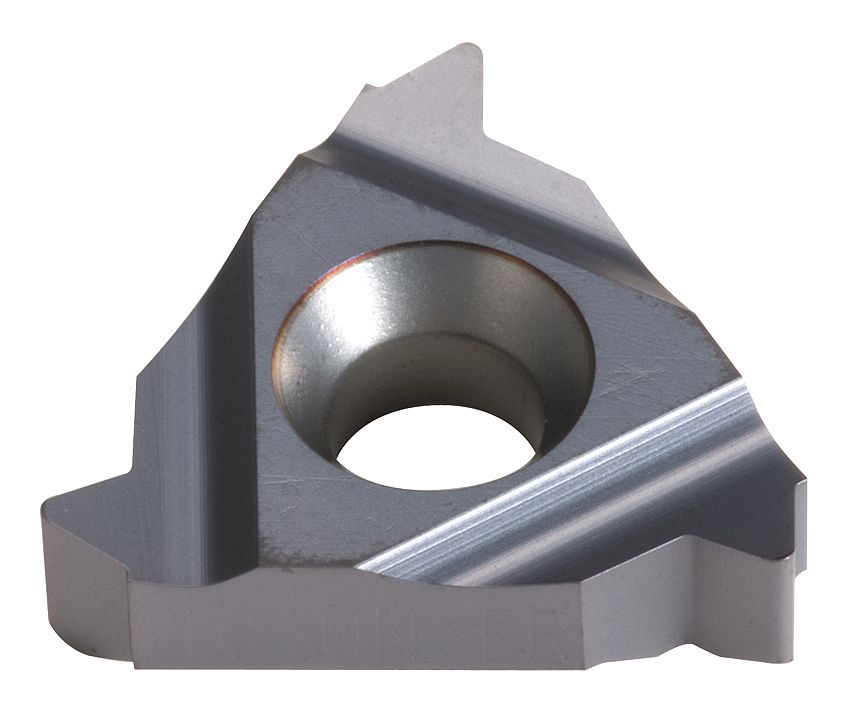

External Thread Turning Insert – BSPT Full Profile 55°
The BSPT Full Profile External Thread Turning Insert is designed for cutting British Standard Pipe Taper (BSPT) threads with precision and consistency. With a 55° thread angle and a pitch of 11 TPI, this insert forms the complete BSPT thread profile—including crest, root, and flanks—in one pass, ensuring pressure-tight sealing for pipe fittings and hydraulic components.
Manufactured from high-performance BMA-grade carbide, the insert provides excellent wear resistance and edge strength, even in demanding materials like stainless steels and high-tensile alloys. Its optimized X and Y geometry delivers smooth engagement, consistent cutting performance, and efficient chip evacuation during external threading operations.
Key Features:

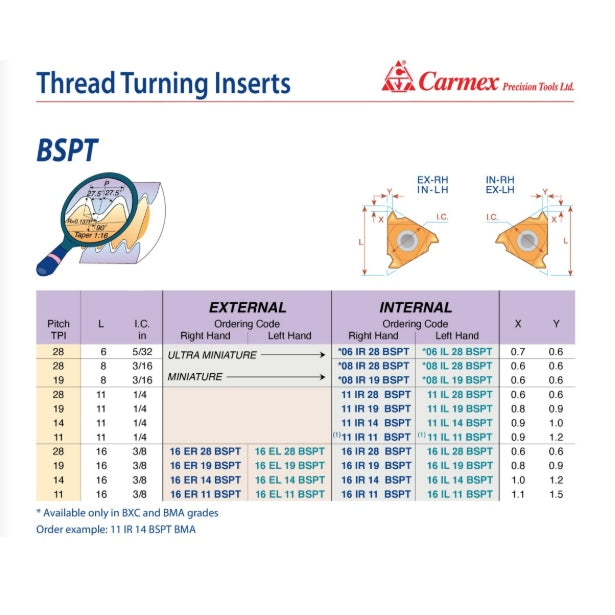

- Ordering Code: 16 ER 11 BSPT BMA
- Thread Type: BSPT (British Standard Pipe Taper – 55°)
- Profile: 55° Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 11 TPI
- X: 1.1 mm
- Y: 1.5 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for BSPT Tapered Pipe Threads
- Key Advantage: Pressure-tight full-thread form generation with superior durability and thermal stability
Manufactured by Carmex Precision Tools Ltd.—a world leader in high-performance cutting tools—this insert is part of a comprehensive lineup that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Known for precision, quality, and reliability, Carmex products are trusted across a wide range of industrial machining operations.
