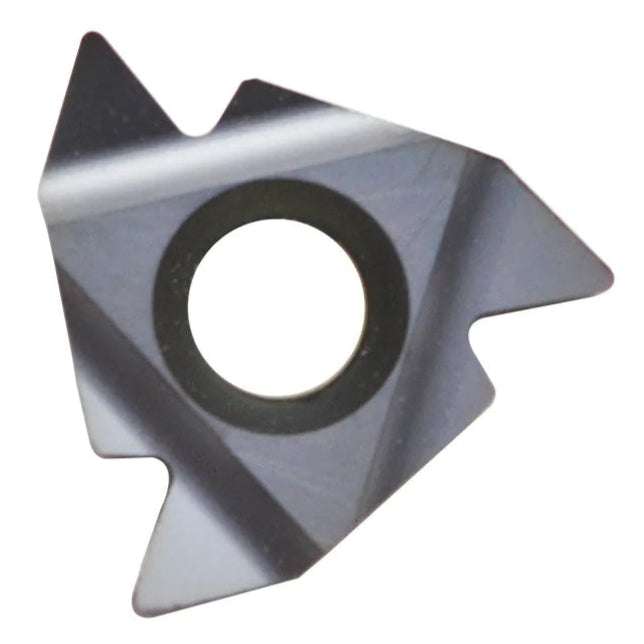

External Thread Turning Insert – UN Full Profile 60°
The UN Full Profile External Thread Turning Insert is designed for producing Unified thread forms (UNC, UNF, UNEF, UNS) with high accuracy and consistency. Specifically configured for a pitch of 11.5 TPI, this insert generates the complete thread form—cutting the crest, root, and flanks in a single pass—ensuring strong, precise external threads.
Manufactured from premium BMA-grade carbide, this insert delivers excellent wear resistance and heat stability, making it ideal for machining tough materials such as stainless steel and high-temperature alloys. The insert's optimized X and Y dimensions enhance cutting performance and chip evacuation, resulting in a clean, efficient threading process.
Key Features:
- Ordering Code: 16 ER 11.5 UN BMA
- Thread Type: UN (Unified Thread Standard – 60°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 11.5 TPI
- X: 1.1 mm
- Y: 1.5 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for Unified (UN) Thread Forms
- Key Advantage: Full-profile threading with high accuracy and wear resistance for fine to medium UN pitches
Manufactured by Carmex Precision Tools Ltd.—a global leader in advanced threading solutions—this insert is part of a high-performance product range that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are renowned for their durability, precision, and consistent performance in demanding machining operations.
