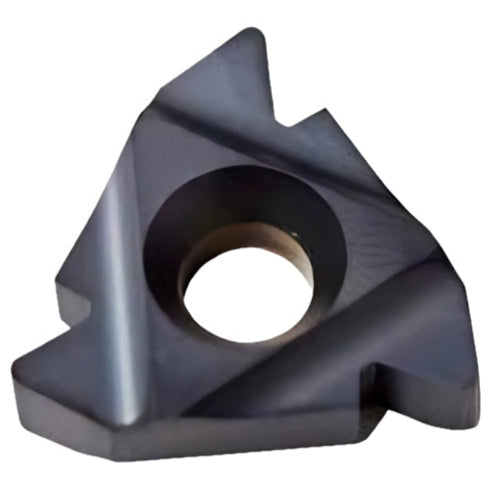

External Thread Turning Insert – Trapez Full Profile 30°
The Trapez Full Profile External Thread Turning Insert is designed for machining trapezoidal thread forms in accordance with DIN 103 standards. With a 30° flank angle and a pitch of 1.5 mm, this insert forms the full thread profile—including crest, root, and flanks—in a single pass, making it ideal for components requiring strong and smooth linear motion.
Manufactured from premium BMA-grade carbide, the insert offers excellent wear resistance, edge stability, and performance in tough materials. With carefully engineered X and Y dimensions, it ensures smooth chip control, accurate thread geometry, and long tool life in demanding production environments.
Key Features:
- Ordering Code: 16 ER 1.5 TR BMA
- Thread Type: Trapez (DIN 103 – 30°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 1.5 mm
- X: 0.9 mm
- Y: 0.9 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for Trapez Thread Forms (DIN 103)
- Key Advantage: Full-profile 30° trapezoidal threading with exceptional precision and tool longevity
Manufactured by Carmex Precision Tools Ltd.—a global leader in high-performance threading tools—this insert is part of a complete range of solutions that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Trusted for their accuracy and durability, Carmex products support critical applications in motion control, power transmission, and lead screw manufacturing.
