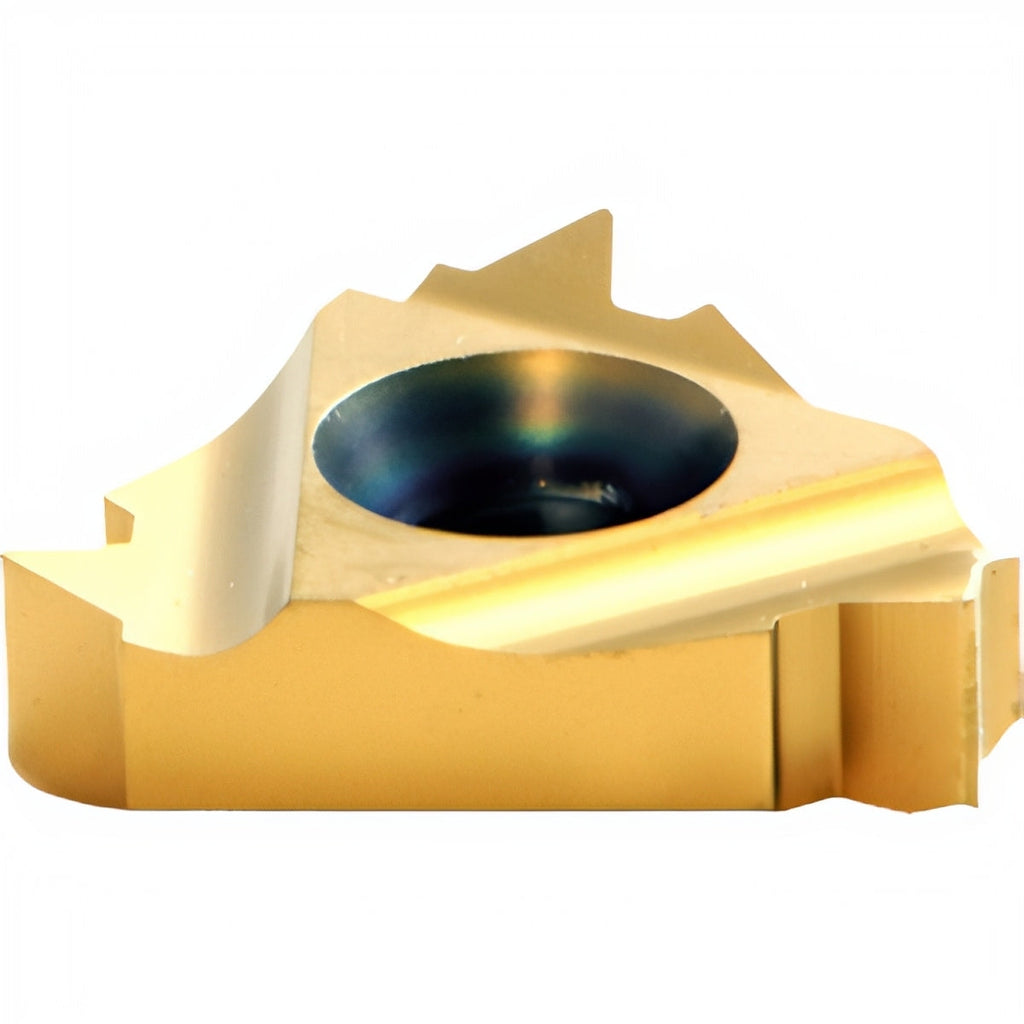

External Thread Turning Insert – Whitworth Full Profile 55°
The Whitworth Full Profile External Thread Turning Insert is engineered for producing accurate British Standard thread forms such as BSW, BSF, BSP, and BSB. Designed for a pitch of 14 TPI, this insert forms the complete 55° profile in a single pass—including crest, root, and flanks—ensuring consistent and pressure-tight thread results in external applications.
Manufactured from high-performance P25C-grade carbide, this insert delivers excellent wear resistance and durability across a wide range of materials. With finely tuned X and Y dimensions, it offers optimal chip control and cutting stability for demanding threading tasks.
Key Features:

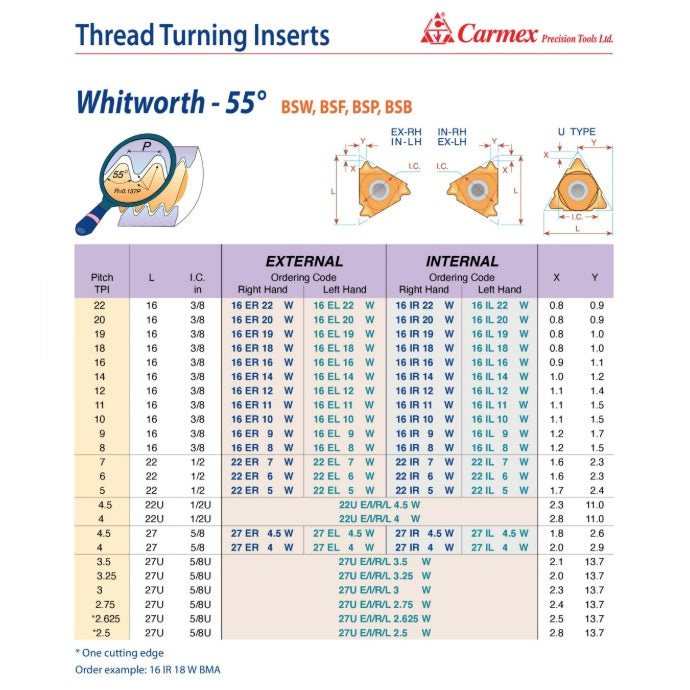

- Ordering Code: 16 ER 14 W P25C
- Thread Type: Whitworth (BSW, BSF, BSP, BSB – 55°)
- Profile: 55° Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 14 TPI
- X: 1.0 mm
- Y: 1.2 mm
- Carbide Grade: P25C
- Applications: External Thread Turning for Whitworth Thread Forms
- Key Advantage: Full-profile 55° thread generation with reliable wear resistance and dimensional accuracy
Manufactured by Carmex Precision Tools Ltd.—a global leader in threading solutions—this insert is part of a comprehensive lineup including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are trusted worldwide for delivering precision, reliability, and exceptional tool life in challenging machining environments.
