Carmex External Right Hand Whitworth Thread Turning Insert 11 TPI / 16 ER 11 W P25C

SKU:16 ER 11 W P25C

Harga:
Harga penjualan$26.60

Termasuk pajak Pengiriman dihitung saat checkout

persediaan:
Hanya16 unit tersisa

Deskripsi

External Thread Turning Insert – Whitworth Profile (11 TPI)

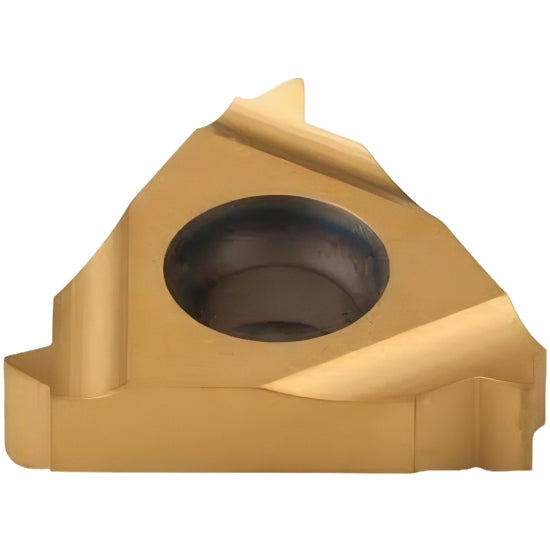

The 16 ER 11 W P25C is a precision external thread turning insert designed for cutting Whitworth threads, which are widely used in pipe fittings, mechanical assemblies, and legacy British-standard components. With an 11 TPI pitch and a rounded thread root form per BS 84 standards, this insert ensures consistent thread geometry and superior finish quality in both low- and high-volume production.

Manufactured from durable P25C-grade carbide, the insert offers excellent performance in general-purpose steel machining, with good toughness, wear resistance, and edge stability. Featuring a 16 mm length and 3/8" I.C., and geometry defined by X = 1.1 mm and Y = 1.5 mm, the insert delivers stable cutting performance, effective chip control, and reliable dimensional accuracy.

Key Features:

  • Ordering Code: 16 ER 11 W P25C
  • Thread Type: Whitworth (BS 84 Standard)
  • Profile: 55° included angle with rounded root and crest
  • Insert Type: External
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Pitch (TPI): 11
  • X: 1.1 mm
  • Y: 1.5 mm
  • Carbide Grade: P25C
  • Applications: External Whitworth thread turning for fittings, connectors, and mechanical components requiring legacy or British-standard thread forms
  • Key Advantage: Precision-ground insert for accurate 55° Whitworth threads with strong wear resistance and reliable tool life

Carmex Precision Tools Ltd. offers specialized threading inserts to meet global standards. Their Whitworth series delivers accurate, durable performance for traditional thread profiles still widely used in industry and maintenance sectors.
