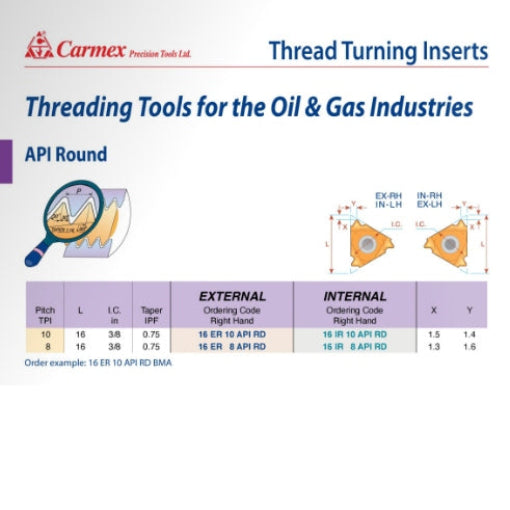

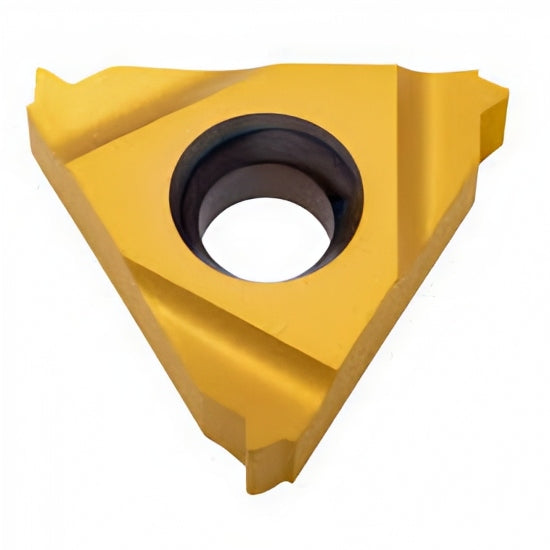

External Thread Turning Insert – API Round Profile
The API Round External Thread Turning Insert – 16 ER 10 API RD MXC – is designed specifically for external threading operations in the oil and gas sector, where API-compliant round threads are required for casing, tubing, and other pressure-rated components. This insert supports the 10 TPI round profile used widely in downhole tool and pipe connections.
Manufactured using high-performance MXC-grade carbide, the insert offers exceptional wear resistance, impact toughness, and performance reliability under high-load conditions. With a compact 16 mm length and 3/8" I.C., it delivers precise cutting and superior chip evacuation, even in challenging materials common to oilfield applications.
Key Features:

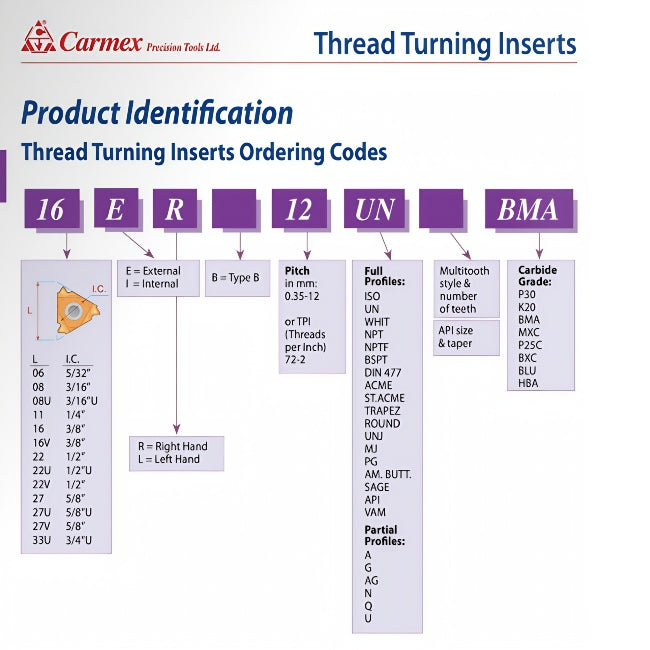

- Ordering Code: 16 ER 10 API RD MXC
- Thread Type: API Round
- Profile: Round Thread Form (API Standard)
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch (TPI): 10
- Taper: 0.75 IPF
- X: 1.5 mm
- Y: 1.4 mm

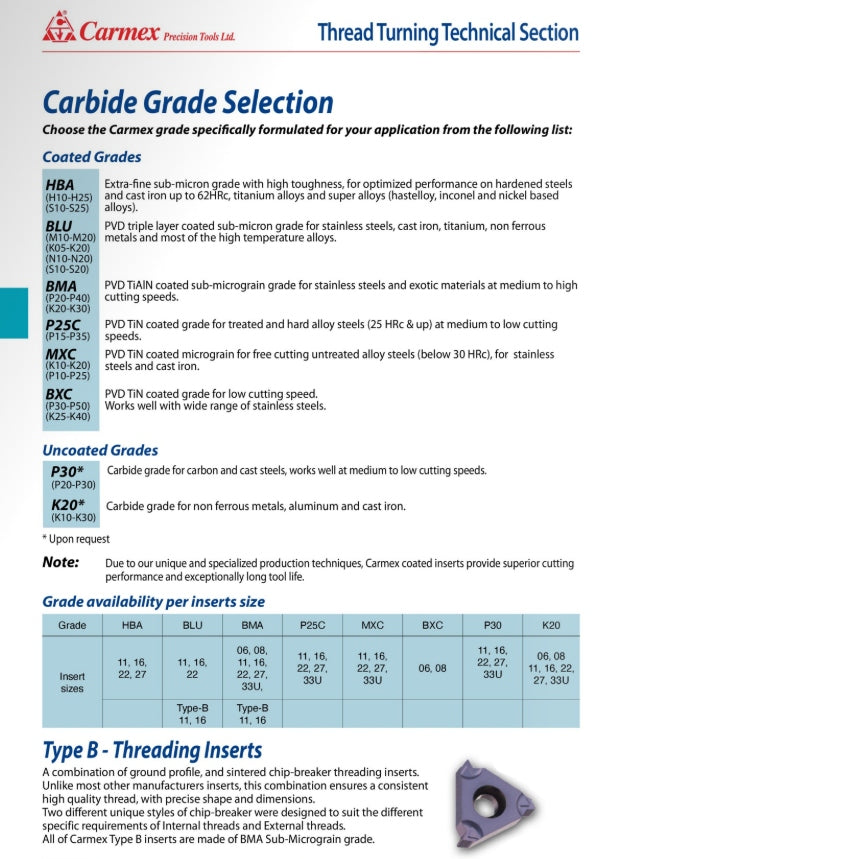

- Carbide Grade: MXC
- Applications: External Thread Turning for API Round threads in oil & gas tubing and casing components
- Key Advantage: High-performance MXC-grade insert designed for rugged API threading applications with consistent profile accuracy
Carmex Precision Tools Ltd. is a trusted global manufacturer of high-quality threading tools. Their API-compliant inserts are engineered for reliability, precision, and performance in the most demanding energy sector environments.
