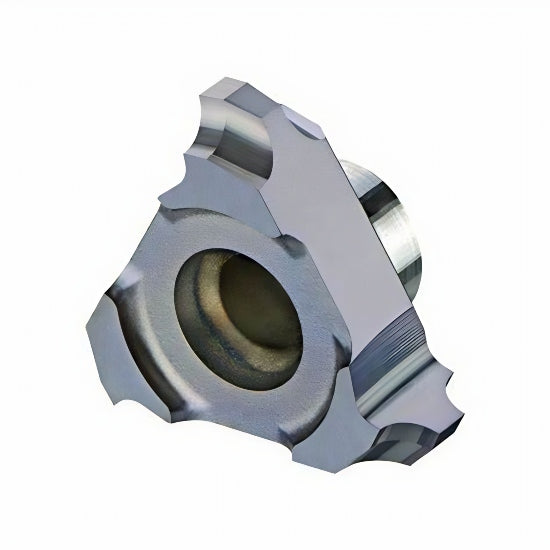

CMT Vertical Milling Tool – C12 Insert, Internal Threading for ISO Full Profile
The CMT C12 Vertical Milling Tool is crafted for precision internal thread milling in fine ISO full-profile threads. Designed for use with C12 inserts, this tool is perfect for creating M12-sized threads and similar fine-pitch profiles. Featuring a cutting diameter of 12.0 mm and a multi-tooth configuration, it ensures exceptional chip evacuation and threading accuracy, even in restricted or deep bores.
Constructed with MT7 carbide grade and finished with a titanium aluminum nitride multi-layer coating (ISO K10–K20), this tool provides high durability, excellent surface finish, and superior wear resistance at elevated machining speeds. The integrated internal coolant feature and a secure clamping mechanism enhance cutting consistency and tool life.
Key Features:

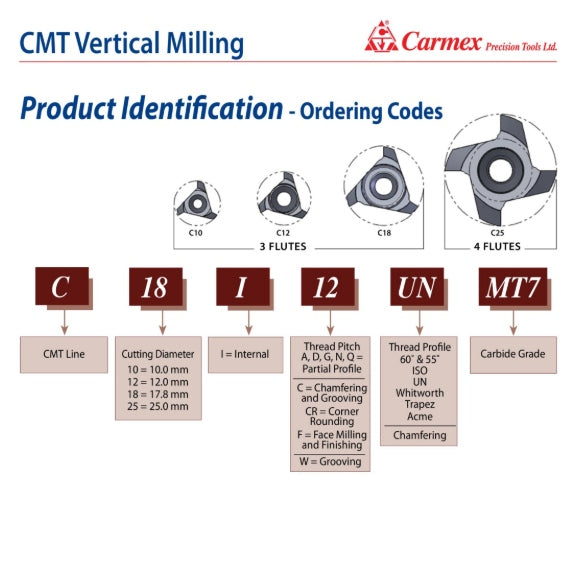

- Ordering code: C12I10ISOMT7
- Tool Type: CMT Vertical Milling – Internal Threading
- Insert Type: C12
-
Thread Sizes:
- M Fine: M14-M19
- Cutting Diameter (D): 12.0 mm
- Number of Teeth: 3
- Pitch: 1.0 mm
- Carbide Grade: MT7
- Coolant: Internal coolant bore
- Clamping: High-accuracy solid clamp system
- Compatibility: Right- and left-hand thread milling
- Holder Code: H3, 3.1, 4, 5, 18, 19, 20
Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
