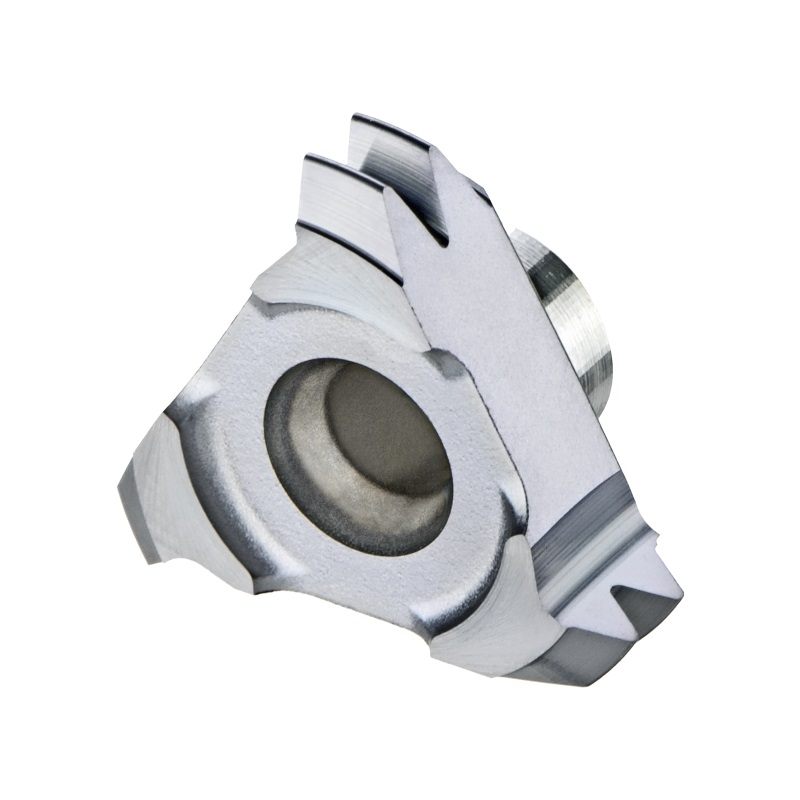

CMT Vertical Milling Tool – C12 Insert, Internal Threading for Full Profile UN Threads
The CMT C12 Vertical Milling Tool is designed for precise internal thread milling of Unified National (UN) full-profile threads. Compatible with C12 inserts, this tool delivers exceptional performance and chip control when producing threads with an 11 TPI pitch. Its cutting diameter of 12.0 mm makes it ideal for mid-range threading applications requiring accuracy and repeatability.
Featuring MT7 carbide grade with a titanium aluminum nitride multi-layer coating (ISO K10–K20), the tool provides extended wear resistance, excellent surface finish, and stable cutting performance at high speeds. Internal coolant capability and a precision clamping system enhance reliability in demanding CNC operations.
Key Features:

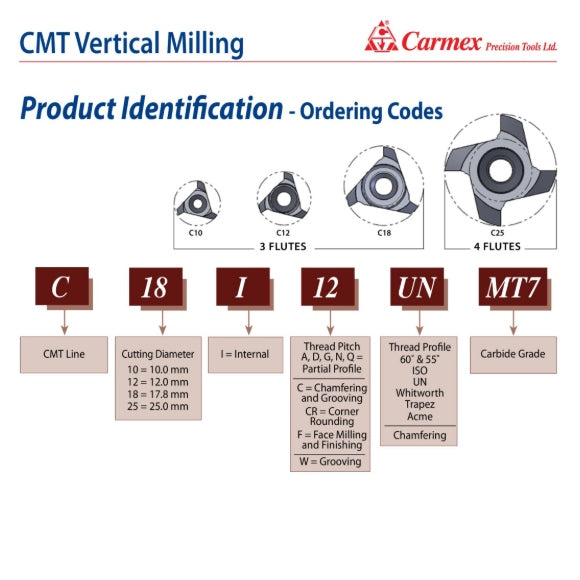

- Ordering code: C12I11UNMT7
- Tool Type: CMT Vertical Milling – Internal Threading
- Insert Type: C12
-
Thread Specification:
- UNC: 5/8
- Pitch: 11 TPI
- Cutting Diameter (D): 12.0 mm
- Number of Teeth: 1
- Carbide Grade: MT7
- Coolant: Internal coolant bore
- Clamping: High-accuracy solid clamp system
- Compatibility: Right- and left-hand thread milling
- Holder Code: H3, 4, 5, 18, 20
Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
