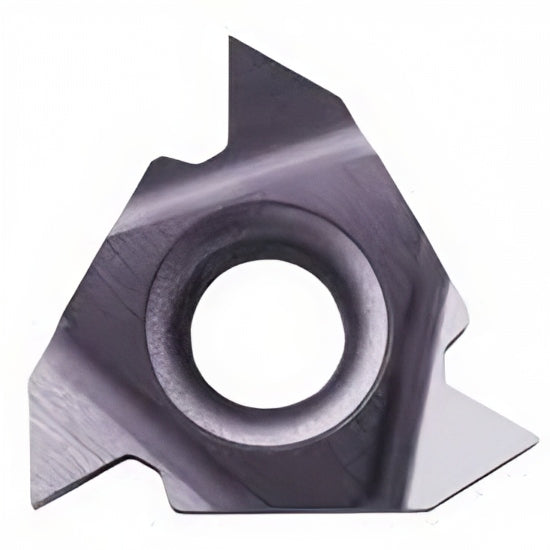

Internal Thread Turning Insert – UN (Unified) 60°
The Unified (UN) Internal Thread Turning Insert is crafted for high-precision machining of UNC, UNF, UNEF, and UNS threads with a 60° profile. Optimized for a 4.5 TPI pitch, this full-profile insert accurately forms the entire thread crest, root, and flanks in a single pass. It is ideal for producing robust, leak-tight threads in mechanical, structural, and heavy-duty industrial components.
Manufactured from high-performance BMA-grade carbide, the insert offers exceptional wear resistance, heat resistance, and dimensional stability. With geometry dimensions of X = 1.7 mm and Y = 2.4 mm, this insert ensures consistent internal threading performance for coarse-pitch threads in larger bore diameters.
Key Features:
- Ordering Code: 27 IR 4.5 UN BMA
- Thread Type: UN – Unified (UNC, UNF, UNEF, UNS)
- Profile: 60° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 27 mm
- I.C.: 5/8"
- Pitch: 4.5 TPI
- X: 1.7 mm
- Y: 2.4 mm
- Carbide Grade: BMA
- Applications: Internal Thread Turning for Unified Threads in Heavy-Duty and Industrial Assemblies
- Key Advantage: Full-profile threading with superior tool life, chip control, and profile accuracy for coarse UN threads
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
