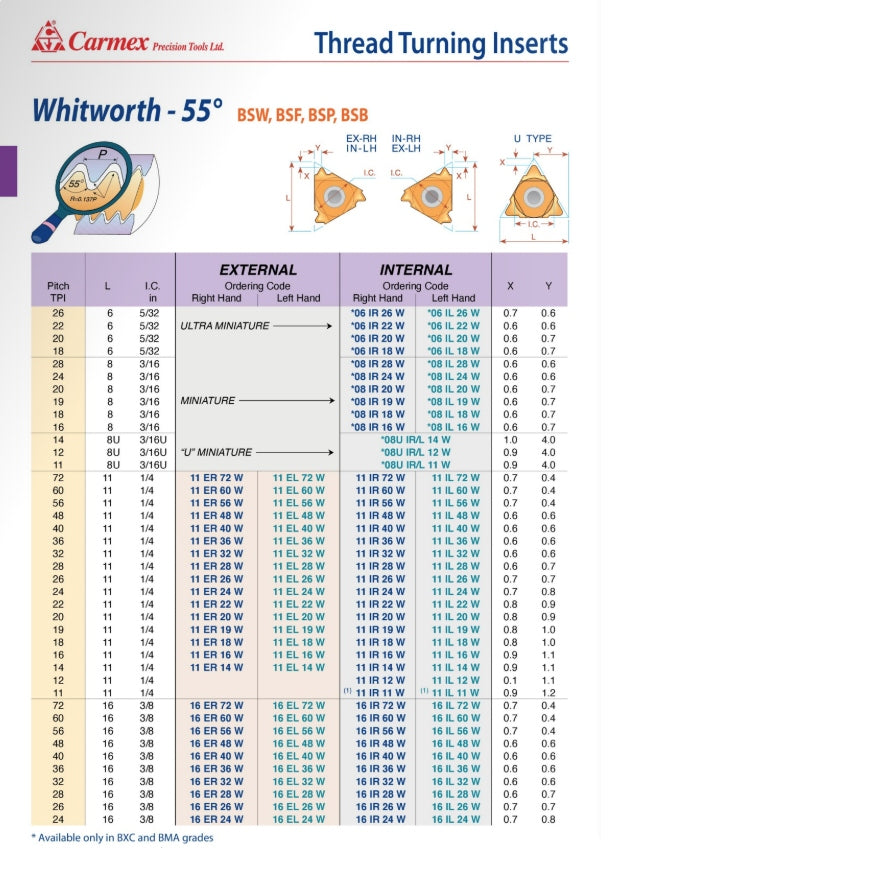

Internal Thread Turning Insert – Whitworth 55°
The Whitworth Internal Thread Turning Insert is engineered for machining British Standard threads, including BSW, BSF, BSP, and BSB, with a 55° thread angle. Designed specifically for 19 TPI threads, this full-profile insert accurately forms the crest, root, and flanks in one pass delivering strong, pressure-tight threads for a variety of pipe fittings and fastener applications commonly used in British and international standards.
Manufactured from robust P25C-grade carbide, the insert ensures reliable wear resistance, thermal control, and consistent cutting performance. With X = 0.8 mm and Y = 1.0 mm, this insert is suitable for internal threading in small-to-medium diameter bores, ensuring clean thread form and long tool life.
Key Features:
- Ordering Code: 11 IR 19 W P25C
- Thread Type: Whitworth (BSW, BSF, BSP, BSB)
- Profile: 55° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 11 mm
- I.C.: 1/4"
- Pitch: 19 TPI
- X: 0.8 mm
- Y: 1.0 mm
- Carbide Grade: P25C
- Applications: Internal Thread Turning for Whitworth Threads in Piping, Fittings, and Fastening Systems
- Key Advantage: High-precision threading with reliable tool life and thread profile integrity for standard 55° Whitworth forms
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
