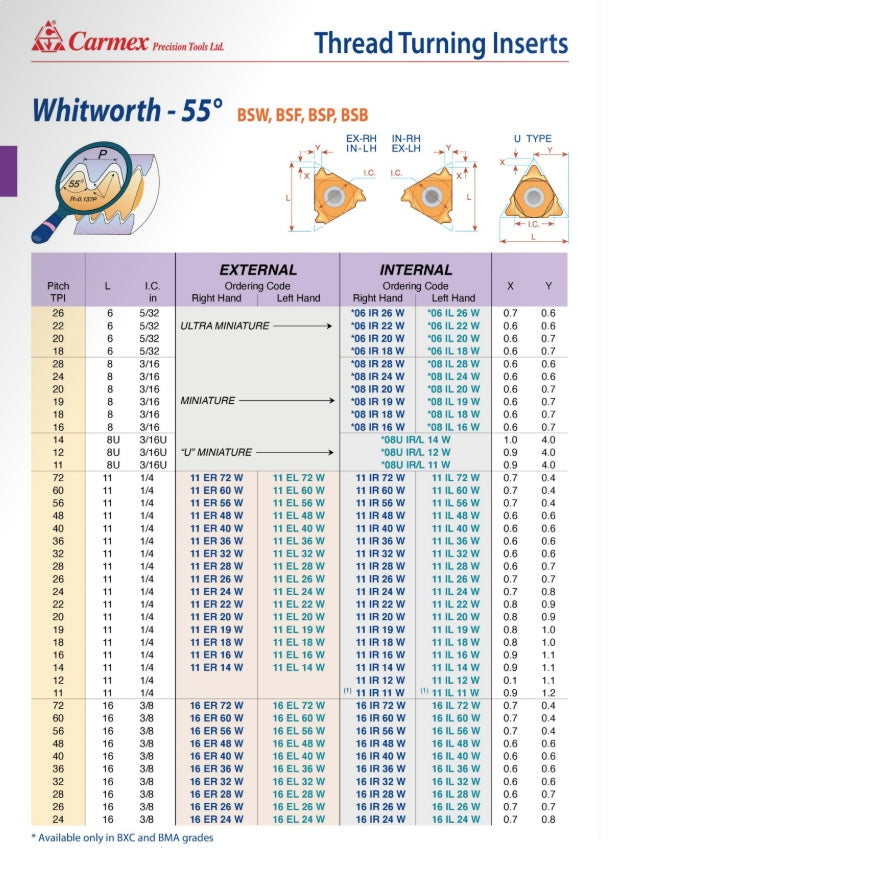

Internal Thread Turning Insert – Whitworth 55°
The Whitworth Internal Thread Turning Insert is designed for the precise machining of British Standard thread forms including BSW, BSF, BSP, and BSB. This full-profile insert, engineered for fine 28 TPI threading, accurately forms the complete thread profile crest, root, and flanks in one efficient pass. It is well-suited for threading components that require high precision in small diameters and tight tolerances.
Constructed from high-quality P25C-grade carbide, this insert offers excellent wear resistance, thermal stability, and edge strength. With compact dimensions of X = 0.6 mm and Y = 0.7 mm, it is ideal for small bore internal threading applications where space and precision are critical.
Key Features:
- Ordering Code: 11 IR 28 W P25C
- Thread Type: Whitworth (BSW, BSF, BSP, BSB)
- Profile: 55° Full Form
- Insert Type: Internal
- Hand: Right Hand
- L: 11 mm
- I.C.: 1/4"
- Pitch: 28 TPI
- X: 0.6 mm
- Y: 0.7 mm
- Carbide Grade: P25C
- Applications: Internal Thread Turning for Fine-Pitch Whitworth Threads in Compact Components
- Key Advantage: Full-profile threading with high accuracy, ideal for small parts and fine-thread applications
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
