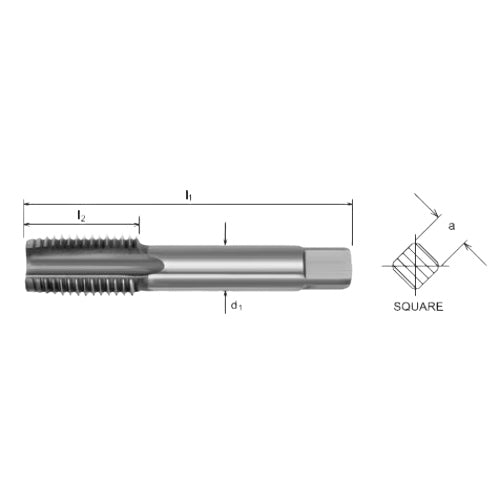

HSS Metric Fine Tap M25 x 1.5 Bottom – Somta Series 511
The SOMTA 5112503 – M25 x 1.5 Metric Fine Bottom Tap is engineered for precise internal threading near the base of blind holes. Crafted from high-grade High-Speed Steel (HSS), this tap delivers excellent cutting performance and wear resistance. It features a bottoming chamfer with only 1–2 threads engaged, making it ideal for finishing threads started with taper or intermediate taps. The fine 1.5 mm pitch ensures a tight, high-integrity thread profile suitable for applications that demand enhanced precision and sealing.
Key Features & Benefits
- Bottoming Chamfer – Designed for full-depth threading in blind holes with minimal lead-in space.
- Fine Pitch Threading (M25 x 1.5) – Ideal for applications requiring close thread engagement and tight tolerances.
- HSS Material – Ensures strength, heat resistance, and extended tool life under repeated use.
- Straight Flute Design – Suitable for short-chipping materials and versatile tapping operations.
- Short Hand Tap Style – Compact length enhances control and accessibility in confined setups.
- Right-Hand Thread – Standard cutting direction compatible with most metric systems.

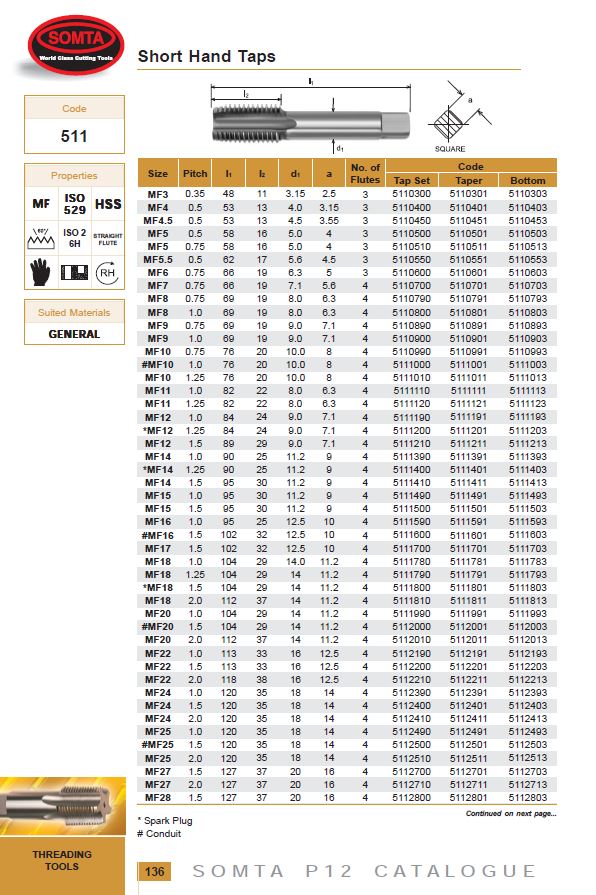

Technical Specifications
- Part No: 5112503
- Thread Size: M25 x 1.5 (Metric Fine Pitch)
- Tap Type: Bottom (Short Hand Tap)
- Chamfer Type: Bottom – 1 to 2 threads
- Flute Type: Straight Flute
- Thread Direction: Right-Hand
- Material: High-Speed Steel (HSS)
- Standard: ISO Metric
- Application: For steel, cast iron, aluminum, and other machinable metals
Why Choose the SOMTA 5112503 Bottom Tap?
- Optimal for Blind Holes – Bottom chamfer enables full thread profile close to the base of the hole.
- Fine Thread Control – Delivers enhanced sealing and tight fit in high-spec mechanical assemblies.
- Durable HSS Build – Maintains cutting performance and resists wear under high loads.
- Flexible Use – Works well in both hand and machine tapping environments.
The SOMTA 5112503 tap is your go-to tool for finishing blind-hole threading in fine-pitch M25 x 1.5 applications—engineered for accuracy, strength, and industrial-grade reliability.
