Carmex External ISO Threadmill Insert 40mm/ 2.0mm pitch

SKU: 40 E 2.0 ISO MT7

Price:
Sale price$298.31

Tax included Shipping calculated at checkout

Stock:
Only 2 units left

Description

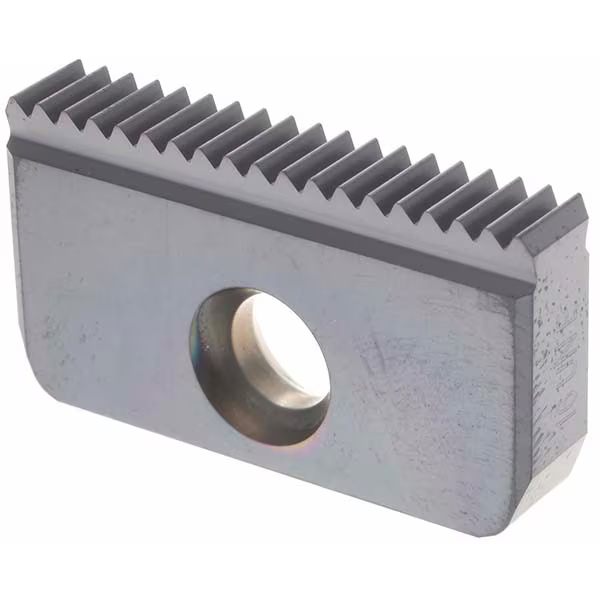

Mill-Thread Insert – ISO 2.0 mm Pitch, External

The 40 E 2.0 ISO MT7 Mill-Thread Insert is designed for external threading of ISO metric profiles on CNC milling machines using helical interpolation. With a 2.0 mm pitch, this insert is ideal for creating standard ISO threads on external surfaces of medium to large components across a range of mechanical and industrial applications. Its size 40 body, with a 20 mm height and 6.3 mm thickness, ensures stable cutting, precise thread formation, and effective chip evacuation in high-precision operations.

Made from Carmex’s premium MT7 carbide grade, the insert offers excellent wear resistance, thermal stability, and tool life delivering consistent performance in both low- and high-volume runs. It is fully compatible with Carmex’s SR series toolholders for external threading available in various configurations with internal coolant and carbide shank options to maximize rigidity and machining precision.

Key Features:

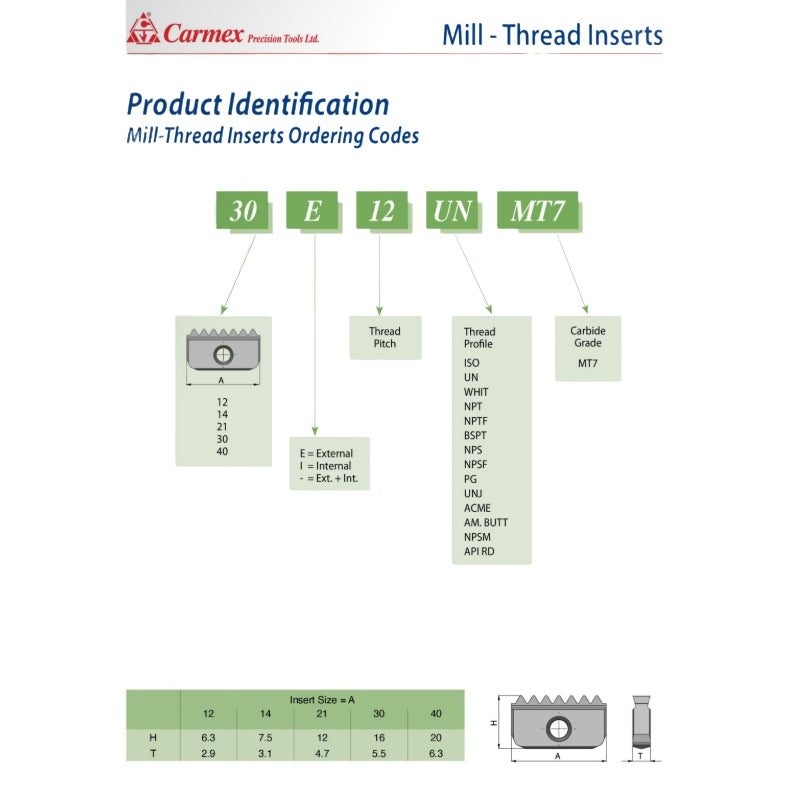

  • Ordering Code: 40 E 2.0 ISO MT7
  • Thread Type: External Threading

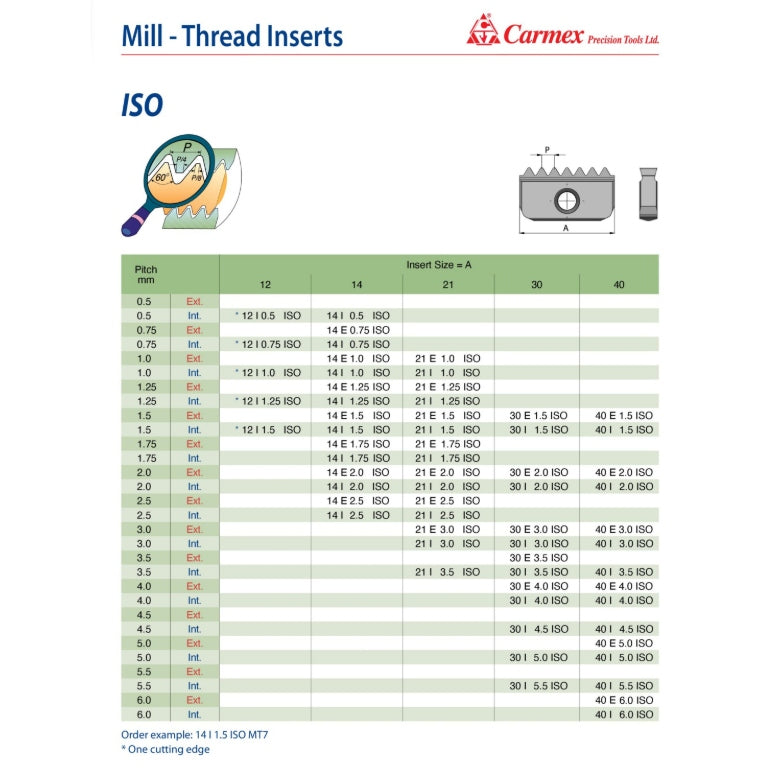

  • Thread Profile: ISO – Metric
  • Pitch (mm): 2.0
  • Insert Size: 40
  • H (Height): 20 mm
  • T (Thickness): 6.3 mm
  • Carbide Grade: MT7
  • Insert Type: External-use only
  • Applications: Standard ISO external threads in mechanical and industrial assemblies
  • Key Advantage: High-precision threading with excellent tool life and SR series toolholder compatibility

Carmex Precision Tools Ltd. is globally recognized for its advanced threading solutions. The company offers a full range of Thread Turning inserts, Mill-Thread tools, Spiral Mill-Thread, Solid Carbide threadmills, and SR Series Toolholders ensuring complete performance and compatibility from insert to toolholder.
