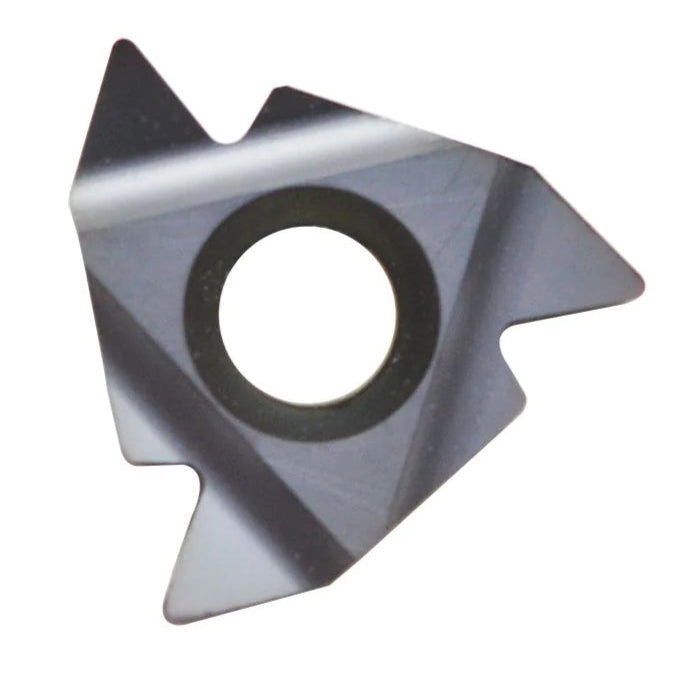

Carmex External Right Hand ACME Thread Turning Insert 10 TPI / 16 ER 10 ACME BMA

SKU: 16 ER 10 ACME BMA

Price:
Sale price$32.73

Tax included Shipping calculated at checkout

Stock:
In stock (47 units), ready to be shipped

Description

External Thread Turning Insert – ACME Full Profile

The ACME Full Profile External Thread Turning Insert is designed for machining ACME thread forms with high precision. With a 10 TPI pitch, this insert generates the complete ACME thread profile including crest, root, and flanks in a single pass, ensuring strong, load-bearing threads ideal for linear motion systems and power transmission components.

Made from durable BMA-grade carbide, the insert offers exceptional wear resistance, edge stability, and thermal performance. Its optimized geometry, including precise X and Y dimensions, provides reliable engagement and effective chip control during external threading of various materials.

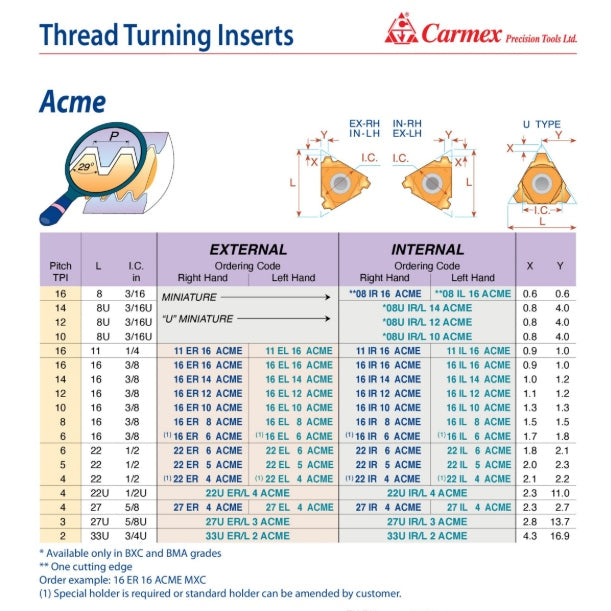

Key Features:

  • Ordering Code: 16 ER 10 ACME BMA
  • Thread Type: ACME
  • Profile: Full Form
  • Insert Type: External
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Pitch: 10 TPI
  • X: 1.3 mm
  • Y: 1.3 mm
  • Carbide Grade: BMA
  • Applications: External Thread Turning for ACME Thread Forms
  • Key Advantage: Full-profile thread accuracy with high durability for demanding mechanical applications

Manufactured by Carmex Precision Tools Ltd. a globally recognized leader in threading and cutting tools—this insert is part of Carmex’s advanced lineup that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Built for accuracy, longevity, and performance, Carmex tools are trusted worldwide in precision manufacturing.
