Carmex External Right Hand ACME Thread Turning Insert 14 TPI / 16 ER 14 ACME BMA

SKU: 16 ER 14 ACME BMA

Price:
Sale price$32.73

Tax included Shipping calculated at checkout

Stock:
Only 9 units left

Description

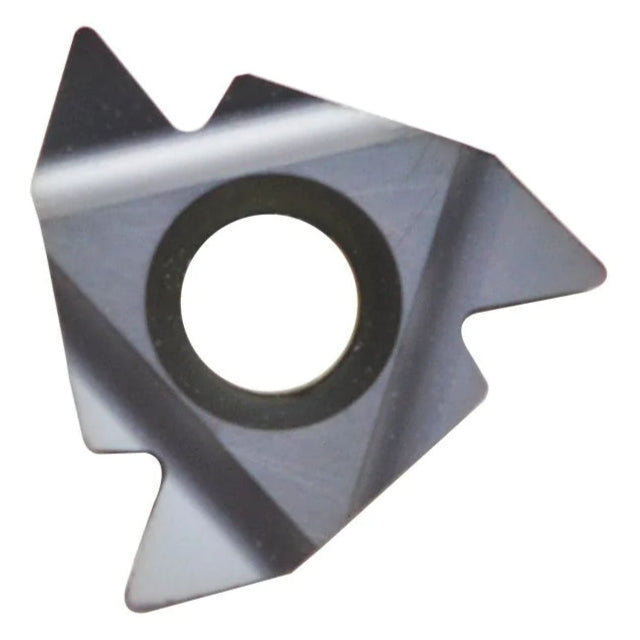

External Thread Turning Insert – ACME Full Profile

The ACME Full Profile External Thread Turning Insert is designed for precision machining of ACME threads, which feature a trapezoidal profile optimized for power transmission and linear motion. With a pitch of 14 TPI, this insert forms the full thread profile crest, root, and flanks in a single pass, ensuring strength and uniformity in external thread applications.

Manufactured from high-performance BMA-grade carbide, the insert offers excellent wear resistance and thermal stability, making it suitable for challenging materials such as stainless steel and high-strength alloys. Its precise X and Y dimensions support optimal chip evacuation and consistent thread accuracy under demanding machining conditions.

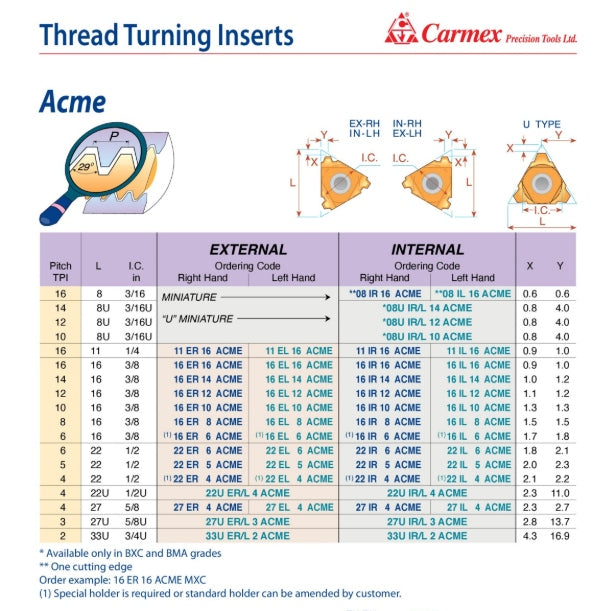

Key Features:

  • Ordering Code: 16 ER 14 ACME BMA
  • Thread Type: ACME
  • Profile: Full Form
  • Insert Type: External
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Pitch: 14 TPI
  • X: 1.0 mm
  • Y: 1.2 mm
  • Carbide Grade: BMA
  • Applications: External Thread Turning for ACME Thread Forms
  • Key Advantage: High-strength full-profile threading with excellent wear resistance and dimensional precision

Manufactured by Carmex Precision Tools Ltd. a global leader in threading technology this insert is part of a comprehensive product portfolio including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are trusted worldwide for delivering accuracy, durability, and performance in demanding machining operations.
