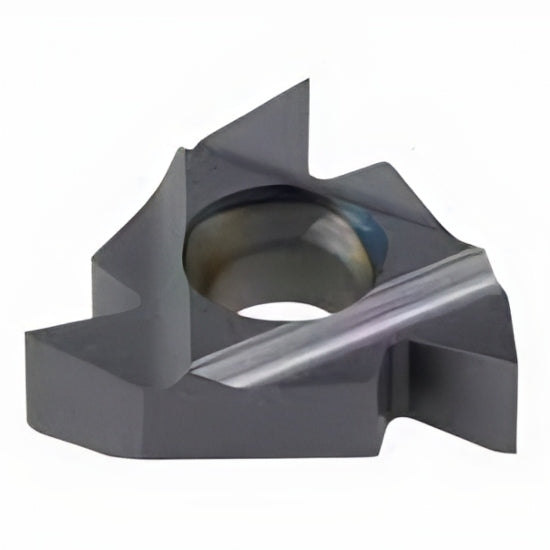

External Thread Turning Insert – American Buttress Full Profile 45°
The American Buttress Full Profile External Thread Turning Insert is engineered for the precise machining of 45° buttress threads, commonly used in high-load applications like hydraulic cylinders, jacks, and heavy-duty mechanical assemblies. This insert is optimized for a 20 TPI pitch and generates the complete thread profile crest, root, and flanks in a single pass, ensuring structural integrity and high-performance threading.
Made from premium BMA-grade carbide, the insert offers superior wear resistance, heat stability, and edge retention. Its well-balanced X and Y cutting geometry promotes efficient chip evacuation, clean finishes, and extended tool life even in challenging industrial materials.

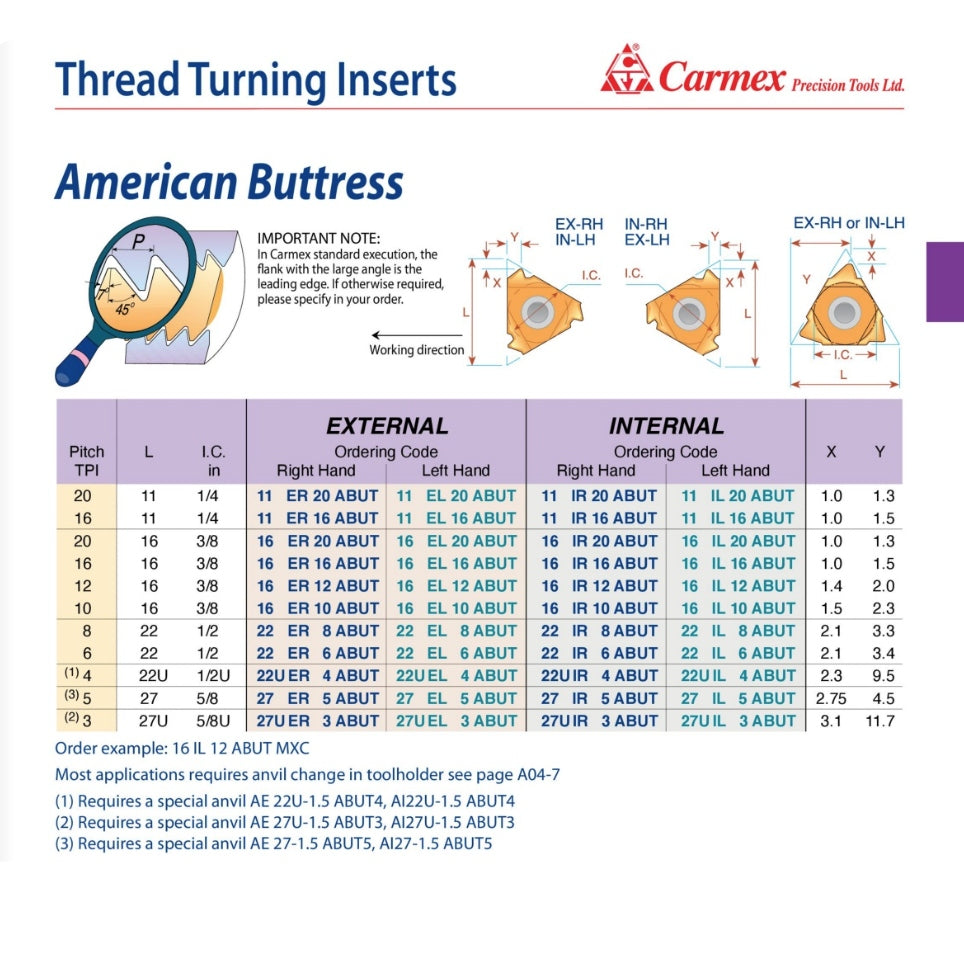

Key Features:
- Ordering Code: 16 ER 20 ABUT BMA
- Thread Type: American Buttress (ABUT – 45°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 20 TPI
- X: 1.0 mm
- Y: 1.3 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for American Buttress Threads in high-load mechanical assemblies
- Key Advantage: Full-profile buttress threading with strong structural integrity and extended tool performance
Manufactured by Carmex Precision Tools Ltd. a global leader in advanced threading solutions this insert is part of a comprehensive product line that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Known for their reliability, Carmex products are trusted across industries for delivering precision, strength, and durability in demanding machining operations.
