Description

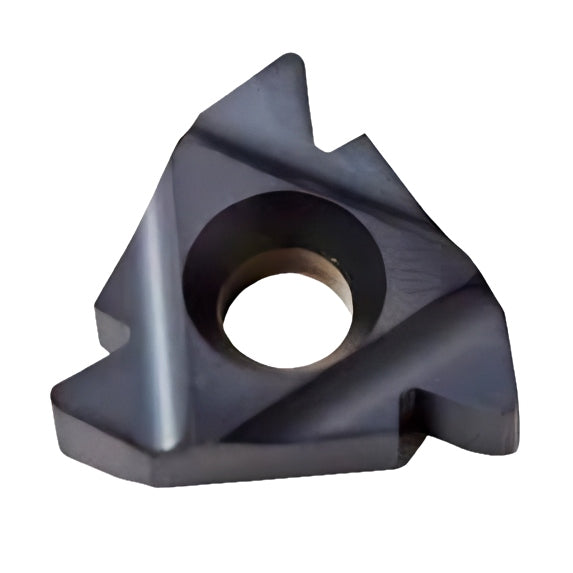

External Thread Turning Insert – American Buttress Full Profile
The American Buttress Full Profile External Thread Turning Insert is specifically designed for producing accurate and durable 45° buttress threads. With an 8 TPI pitch, this insert is ideal for high-load applications such as oilfield casing, hydraulic cylinders, and other heavy-duty mechanical components requiring strong axial load-bearing threads.
Constructed from tough and reliable BMA-grade carbide, the insert offers superior wear resistance, heat resistance, and tool life in demanding machining environments. The insert features optimized geometry, including X and Y dimensions of 2.1 mm and 3.3 mm, for stable cutting action, clean chip evacuation, and precise thread profiles.
Key Features:

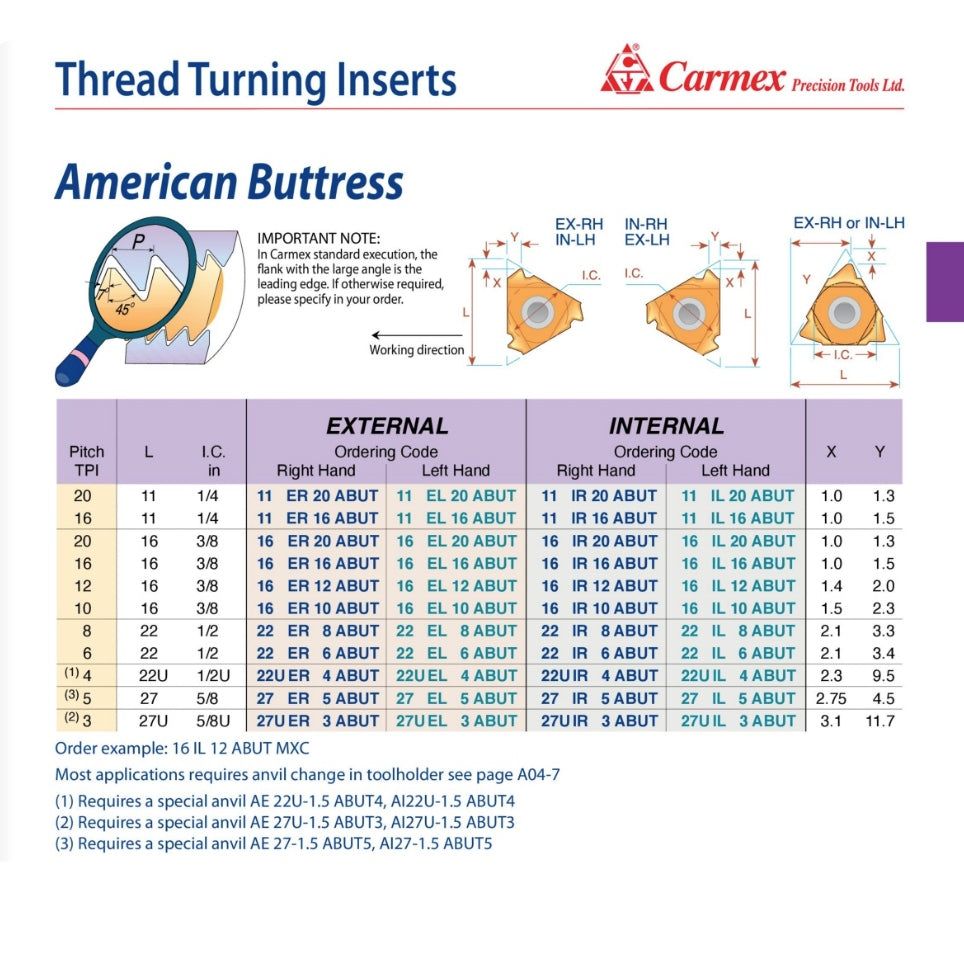

- Ordering Code: 22 ER 8 ABUT BMA
- Thread Type: American Buttress (45°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch: 8 TPI
- X: 2.1 mm
- Y: 3.3 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for American Buttress Thread Forms
- Key Advantage: High-strength, full-profile threading for axial load-bearing components with exceptional durability
Carmex Precision Tools Ltd. is a global leader in the design and manufacture of cutting-edge threading tools. With a product portfolio that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills, Carmex delivers solutions trusted for accuracy, consistency, and performance in diverse industrial sectors.
