Carmex External Right Hand BSPT Thread Turning Insert 14 TPI / 16 ER 14 BSPT BMA

SKU: 16 ER 14 BSPT BMA

Price:
Sale price$31.60

Tax included Shipping calculated at checkout

Stock:
Only 12 units left

Description

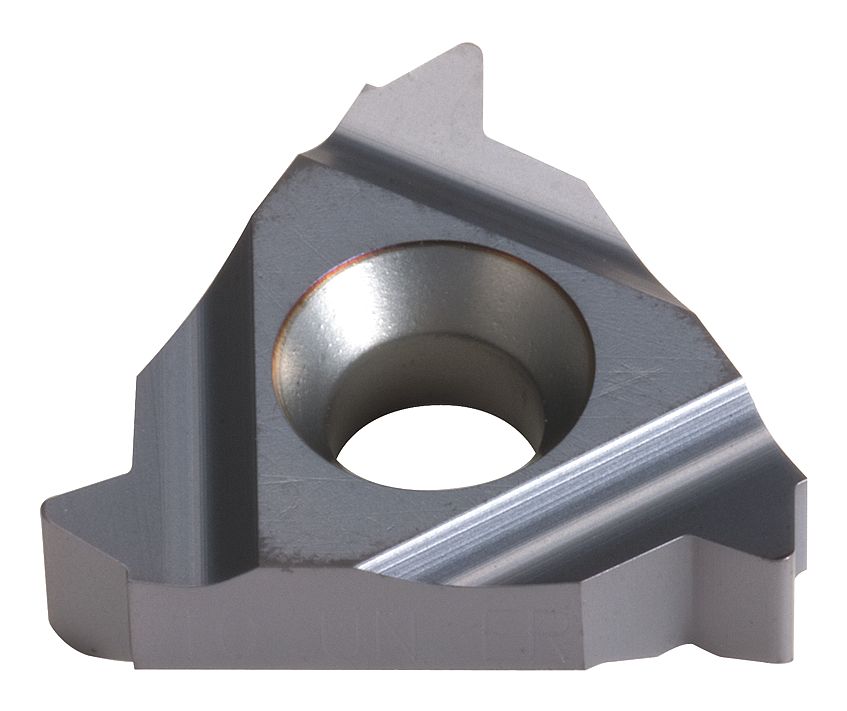

External Thread Turning Insert – BSPT Full Profile 55°

The BSPT Full Profile External Thread Turning Insert is designed for precise machining of British Standard Pipe Taper (BSPT) threads. Featuring a 55° thread angle and a pitch of 14 TPI, this insert forms the complete thread profile—crest, root, and flanks—in a single operation, delivering pressure-tight threads suitable for pipe and hydraulic applications.

Manufactured from high-performance BMA-grade carbide, this insert ensures excellent wear resistance, edge stability, and thermal durability, especially when threading challenging materials such as stainless steel and brass. Optimized X and Y dimensions provide controlled cutting engagement and efficient chip evacuation.

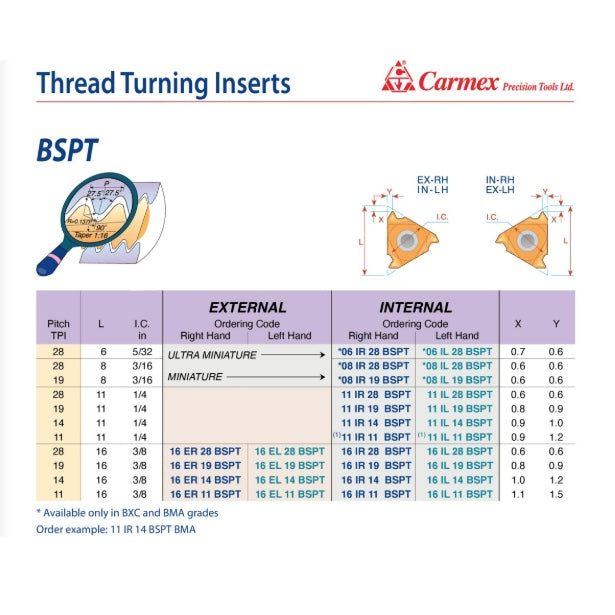

Key Features:

  • Ordering Code: 16 ER 14 BSPT BMA
  • Thread Type: BSPT (British Standard Pipe Taper – 55°)
  • Profile: 55° Full Form
  • Insert Type: External
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Pitch: 14 TPI
  • X: 1.0 mm
  • Y: 1.2 mm
  • Carbide Grade: BMA
  • Applications: External Thread Turning for BSPT Tapered Pipe Threads
  • Key Advantage: Full-profile pressure-tight thread generation with exceptional wear resistance

Manufactured by Carmex Precision Tools Ltd.—a global leader in cutting tool solutions—this insert is part of a comprehensive threading product range that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Trusted by professionals worldwide, Carmex tools deliver accuracy, reliability, and top-tier performance.
