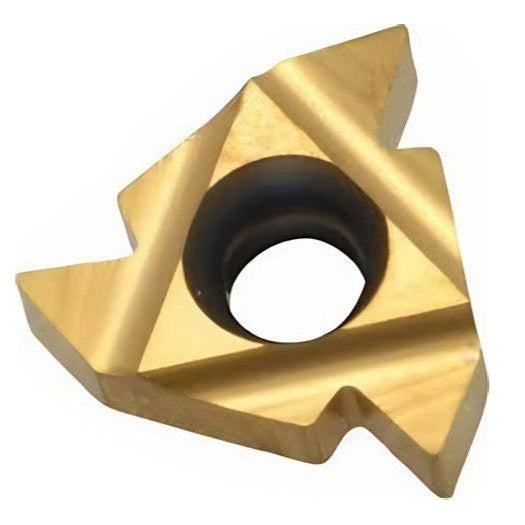

External Thread Turning Insert – ISO Full Profile 60°
The ISO Full Profile External Thread Turning Insert is designed for machining metric threads with a 60° profile, conforming to ISO standards. With a pitch of 1.75 mm, this insert forms the complete thread geometry—crest, root, and flanks—in a single pass, ensuring precise and consistent threads in external applications.
Manufactured from high-performance BMA-grade carbide, this insert offers superior wear resistance, heat tolerance, and edge durability, even when used on tough materials such as stainless steel and high-strength alloys. Its finely tuned X and Y dimensions promote accurate cutting engagement, chip evacuation, and long tool life.
Key Features:

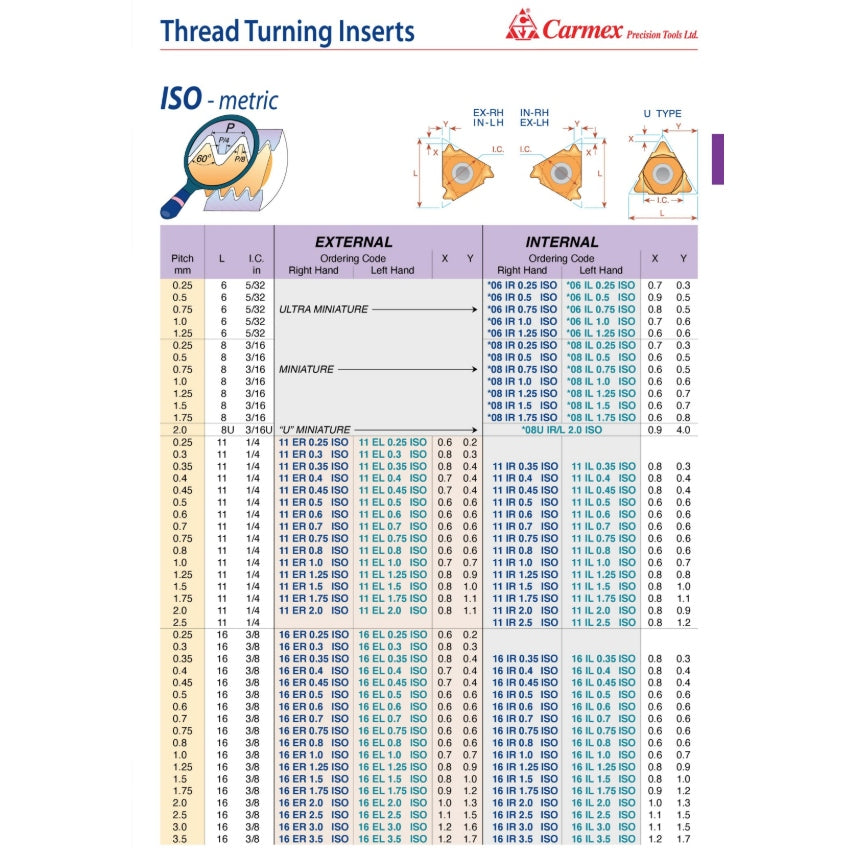

- Ordering Code: 16 ER 1.75 ISO BMA
- Thread Type: ISO (Metric Thread Standard – 60°)
- Profile: Full Form
- Insert Type: External
- Hand: Right Hand
- L: 16 mm
- I.C.: 3/8"
- Pitch: 1.75 mm
- X: 0.9 mm
- Y: 1.2 mm
- Carbide Grade: BMA
- Applications: External Thread Turning for ISO Metric Threads
- Key Advantage: Full-profile ISO threading with high dimensional precision and tool longevity
Manufactured by Carmex Precision Tools Ltd.—a global leader in precision threading solutions—this insert is part of an extensive product line that includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are trusted worldwide for their accuracy, durability, and performance in demanding machining environments.
