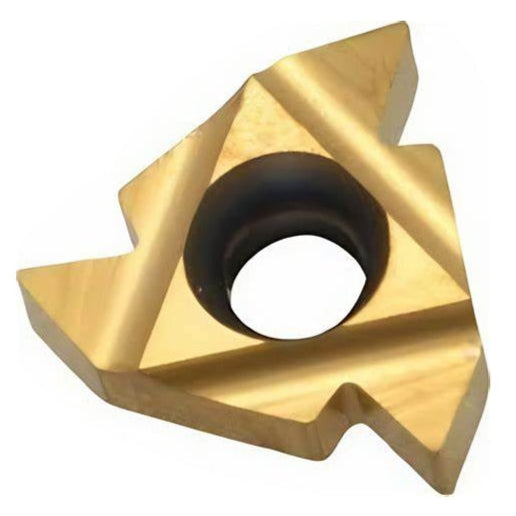

External Thread Turning Insert – ISO Full Profile 60°
The ISO Full Profile External Thread Turning Insert is designed for the accurate and efficient production of metric threads in accordance with ISO standards. With a coarse pitch of 3.5 mm, this insert forms the complete 60° profile—including crest, root, and flanks—in a single pass, delivering robust, high-quality external threads for structural and mechanical applications.
Manufactured from premium P25C-grade carbide, this insert offers exceptional durability, thermal resistance, and edge integrity. Its optimized geometry—with X and Y values of 1.6 mm and 2.3 mm—ensures smooth thread cutting, reliable chip control, and consistent dimensional results in right-hand external threading operations.

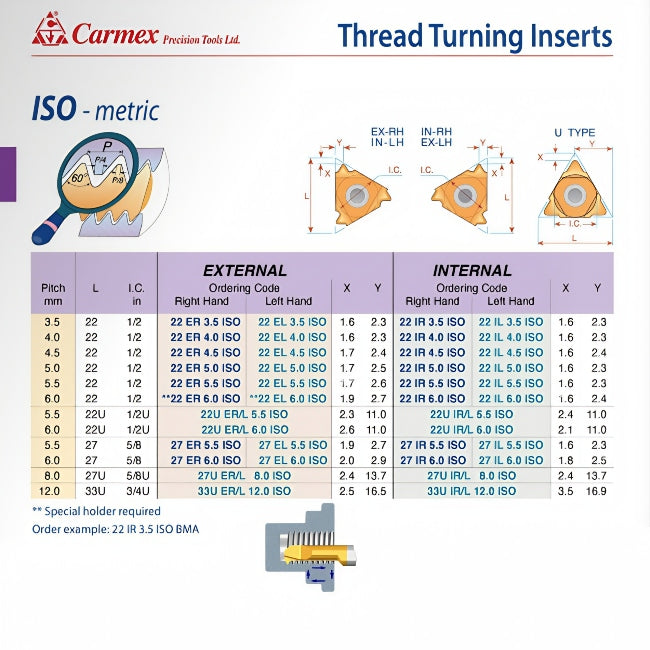

Key Features:
- Ordering Code: 22 ER 3.5 ISO P25C
- Thread Type: ISO (Metric Thread Standard – 60°)
- Profile: 60° Full Form
- Insert Type: External
- Hand: Right Hand
- L: 22 mm
- I.C.: 1/2"
- Pitch: 3.5 mm
- X: 1.6 mm
- Y: 2.3 mm
- Carbide Grade: P25C
- Applications: External Thread Turning for ISO Metric Threads
- Key Advantage: High-strength, full-profile threading for coarse pitches with excellent wear resistance and chip control
Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
